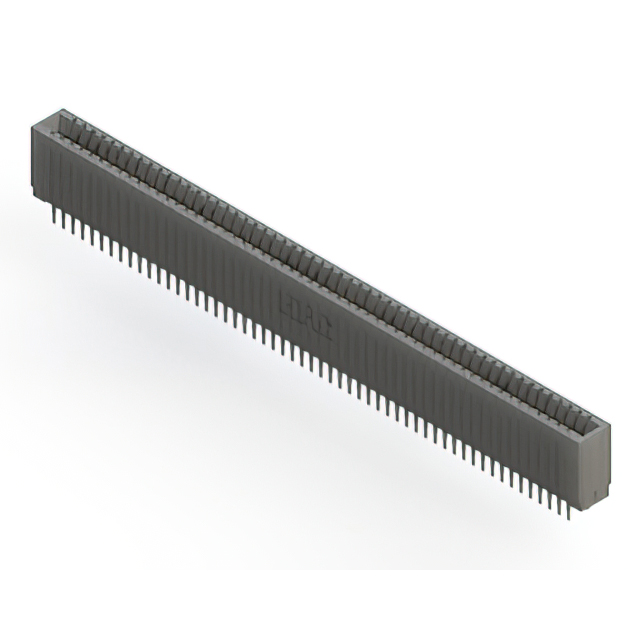

745-110-525-201

Active

EDAC Inc.

CONN EDGE DUAL FML 110POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745-110-525-201

Active

EDAC Inc.

CONN EDGE DUAL FML 110POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-110-525-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	110 positions
Number of Positions/Bay/Row [custom]	55
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-110 Series

Part	Mounting Type	Termination	Pitch [x]	Pitch [x]	Card Type	Gender	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Type	Contact Material	Read Out	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Material - Insulation	Contact Finish	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]
EDAC Inc. 745-110-525-206	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-545-201	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-560-206	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever Make Before Break	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-545-206	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-522-201	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-525-201	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-541-206	Through Hole	Press-Fit Wire Wrap	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 745-110-560-201	Through Hole	Press-Fit	2.54 mm	0.1 in	Non Specified - Dual Edge	Female	55	2	Cantilever Make Before Break	Copper Alloy	Dual	0.76 Ám	30 Áin	Black	110 positions	Polyester Thermoplastic	Gold	2	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 13.96

Description

General part information

745-110 Series

110 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
