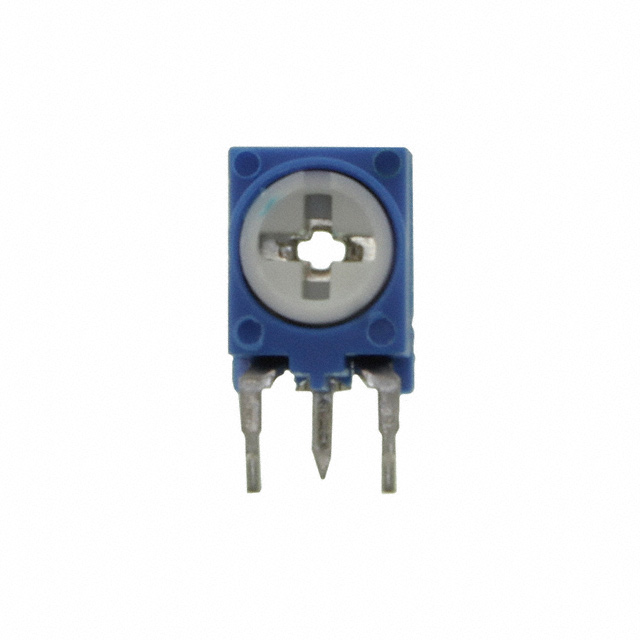

N6S25T0N-503

Active

Amphenol Piher Sensing Systems

TRIMMER 50K OHM 0.1W PC PIN SIDE

Search across all available documentation for this part.

Active

Amphenol Piher Sensing Systems

TRIMMER 50K OHM 0.1W PC PIN SIDE

Technical Specifications

Parameters and characteristics commom to parts in this series

TRIMMER 10K OHM 0.1W PC PIN SIDE

Part	Power (Watts)	Power (Watts)	Termination Style	Resistive Material	Mounting Type	Resistance	Adjustment Type	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Number of Turns
Amphenol Piher Sensing Systems N6S25T0C-103-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	10000 Ohms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0N-503-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	50 kOhms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0C-102-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	1000 Ohms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0N-504	0.1 W	0.1 W	PC Pins	Carbon	Through Hole		Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0C-105-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	1 MOhms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0N-503	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	50 kOhms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0N-504-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole		Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1
Amphenol Piher Sensing Systems N6S25T0C-503-3030	0.1 W	0.1 W	PC Pins	Carbon	Through Hole	50 kOhms	Side Adjustment	30 %	0.252 "	6.4 mm	8.7 mm	0.343 in	300 ppm/°C	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
