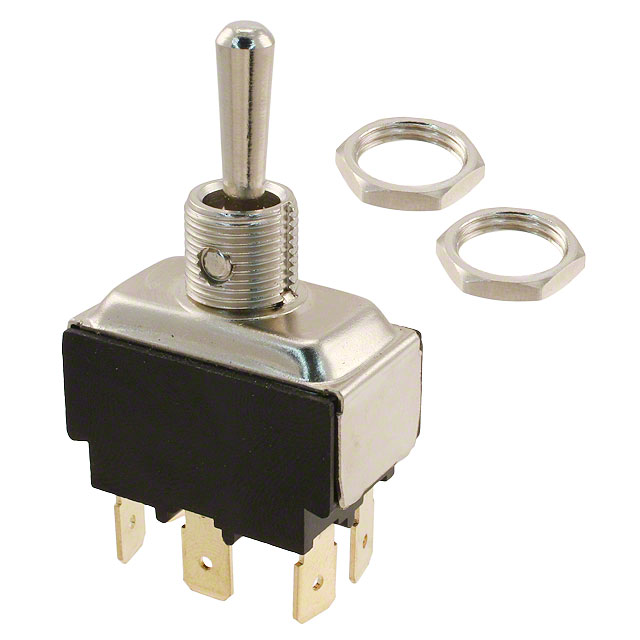

ST246D00
ActiveE-Switch
SWITCH TOGGLE DPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
ST246D00
ActiveE-Switch
SWITCH TOGGLE DPDT 20A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST246D00 |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Material | Brass, Nickel Plated |
| Actuator Type | Standard Round |
| Bushing Thread | M12 |
| Bushing Thread | 1 x 1 |
| Circuit | DPDT |
| Current Rating (Amps) | 20 A |
| Electrical Life | 6000 Cycles |
| Illumination | Non-Illuminated |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | On-Off-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.10 | |
| 10 | $ 7.28 | |||
| 25 | $ 6.95 | |||
| 50 | $ 6.65 | |||
| 100 | $ 6.39 | |||
| 250 | $ 6.05 | |||
| 500 | $ 5.60 | |||
| 1000 | $ 5.34 | |||
Description
General part information
ST246D Series
Toggle Switch DPDT Panel Mount
