TEL 12-1222

Active

Traco Power

12 WATT DC/DC CONVERTER, INDUSTR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 32.27
		10	$ 29.66
		25	$ 28.68
		50	$ 27.96
		100	$ 27.26
		250	$ 26.36
		500	$ 23.40

Description

General part information

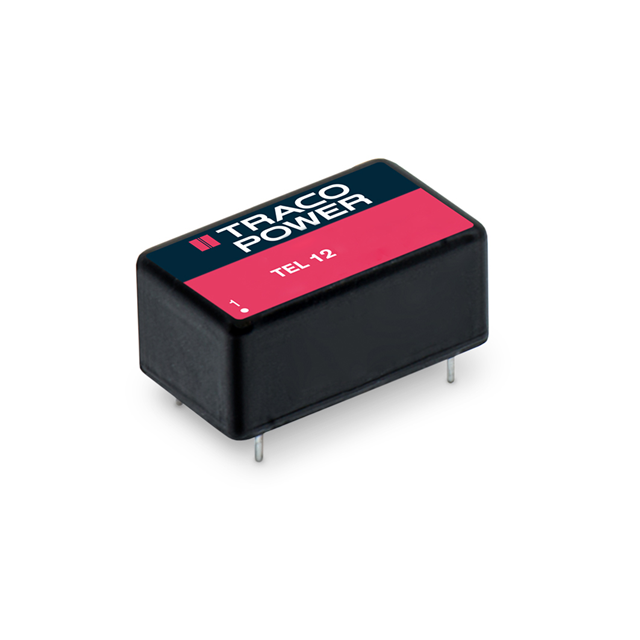

TEL 12 Series

Isolated Module DC DC Converter 2 Output 12V -12V 500mA, 500mA 9V - 18V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TEL 12-1222	TEL 12 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	500 mA	400 - 500 mA
Current - Output (Max)	500 mA	500 mA
Current - Output (Max)	-	1 - 800 mA
Current - Output (Max)	-	400 mA
Efficiency	87 %	83 - 88 %
Features	Baseplate	Baseplate
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	16-DIP Module, 5 Leads	16-DIP Module, 5 Leads
Power (Watts)	12 W	12 W
Size / Dimension	23.8 mm, 10.2 mm, 10.16 mm, 0.54 in, 0.94 in, 13.7 mm	0.54 - 23.8 mm
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 75 V
Voltage - Input (Min) [Min]	9 V	9 - 36 V
Voltage - Isolation	1800 V	1800 V
Voltage - Output 1	12 V	5.1 - 24 V
Voltage - Output 2	-12 V	-15 - -12 V

TEL 12 Series

12 WATT DC/DC CONVERTER, INDUSTR

Part	Voltage - Isolation	Applications	Approval Agency	Number of Outputs	Features	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Voltage - Output 2	Power (Watts)	Voltage - Output 1	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension	Efficiency	Type	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TEL 12-1222	1800 V	ITE (Commercial)	CB, cURus	2	Baseplate	18 V	16-DIP Module, 5 Leads	Through Hole	-12 V	12 W	12 V	500 mA	500 mA	9 V	85 °C	-40 °C	0.54 in, 0.94 in, 10.16 mm, 10.2 mm, 13.7 mm, 23.8 mm	87 %	Isolated Module
