1-111494-8
ActiveTE Connectivity AMP Connectors

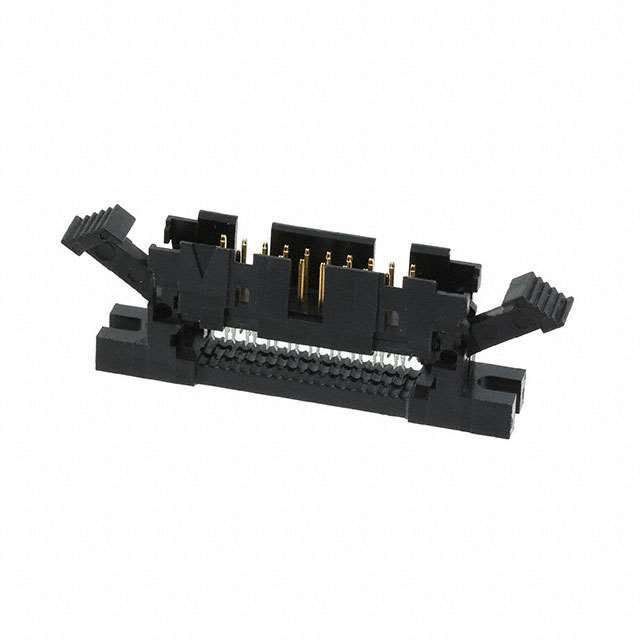

CONN PLUG 20P IDC 26-28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-111494-8
ActiveTE Connectivity AMP Connectors
CONN PLUG 20P IDC 26-28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-111494-8 | 111494 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Male Pin | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks | Latch Lock/Eject Hooks |
| Features | Feed Through | Feed Through |
| Number of Positions | 20 | 20 - 64 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Row Spacing | 2.54 mm | 2.54 mm |
| Row Spacing [x] | 0.1 in | 0.1 in |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 20.96 | |
| 10 | $ 20.52 | |||
| 25 | $ 19.97 | |||
| 50 | $ 18.99 | |||
| 100 | $ 17.14 | |||
| 250 | $ 17.03 | |||
111494 Series
CONN PLUG 20P IDC 26-28AWG GOLD
| Part | Number of Rows | Wire Type | Contact Finish | Pitch [x] | Pitch [x] | Color | Features | Row Spacing [x] | Row Spacing | Connector Type | Fastening Type | Contact Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-111494-8 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 20 | 0.76 Ám | 30 Áin | IDC |
TE Connectivity AMP Connectors 2-111494-2 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 40 | 0.76 Ám | 30 Áin | IDC |
TE Connectivity AMP Connectors 2-111494-1 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 34 | 0.76 Ám | 30 Áin | IDC |
TE Connectivity AMP Connectors 2-111494-3 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 44 | 0.76 Ám | 30 Áin | IDC |
TE Connectivity AMP Connectors 2-111494-4 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 50 | 0.76 Ám | 30 Áin | IDC |
TE Connectivity AMP Connectors 2-111494-6 | 2 | Ribbon Cable | Gold | 2.54 mm | 0.1 in | Black | Feed Through | 0.1 in | 2.54 mm | Plug | Latch Lock/Eject Hooks | Male Pin | 64 | 0.76 Ám | 30 Áin | IDC |
Description
General part information
111494 Series
20 Position Rectangular Plug Connector IDC Gold 26-28 AWG
