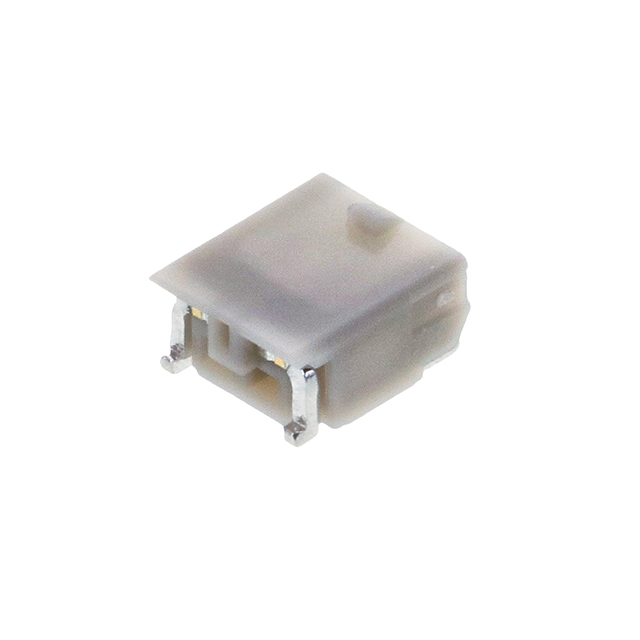

SM02B-SFKH-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.8MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 2POS 1.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM02B-SFKH-TF

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Gray
Insulation Height	3.5 mm
Insulation Height	0.138 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.071 in
Pitch - Mating	1.8 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Style	Voltage Rating	Features	Contact Shape	Number of Positions Loaded	Insulation Color	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Contact Material	Insulation Material	Contact Type	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Rows	Applications
JST Sales America Inc. SM02B-SFHLS-TF	Tin	0.118 in	3 mm	Header	4 A	Surface Mount Right Angle	UL94 V-0	Board to Cable/Wire	350 V	Solder Retention	Square	All	Yellow	Shrouded - 4 Wall	-25 °C	85 °C	2	Solder	Copper Alloy	Thermoplastic	Male Pin	Detent Lock	0.071 in	1.8 mm	1
JST Sales America Inc. SM02B-SFKH-TF	Tin	0.138 in	3.5 mm	Header	4 A	Surface Mount Right Angle	UL94 V-0	Board to Cable/Wire	250 VDC	Solder Retention	Square	All	Gray	Shrouded - 4 Wall	-25 °C	85 °C	2	Solder	Brass	Nylon 6T Polyamide (PA6T)	Male Pin	Locking Ramp	0.071 in	1.8 mm	1	General Purpose
JST Sales America Inc. SM02B-SFHRS-TF	Tin	0.118 in	3 mm	Header	4 A	Surface Mount Right Angle	UL94 V-0	Board to Cable/Wire	350 V	Solder Retention	Square	All	Red	Shrouded - 4 Wall	-25 °C	85 °C	2	Solder	Copper Alloy	Thermoplastic	Male Pin	Detent Lock	0.071 in	1.8 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 2 position 0.071" (1.80mm)
