082-96

Active

Amphenol RF

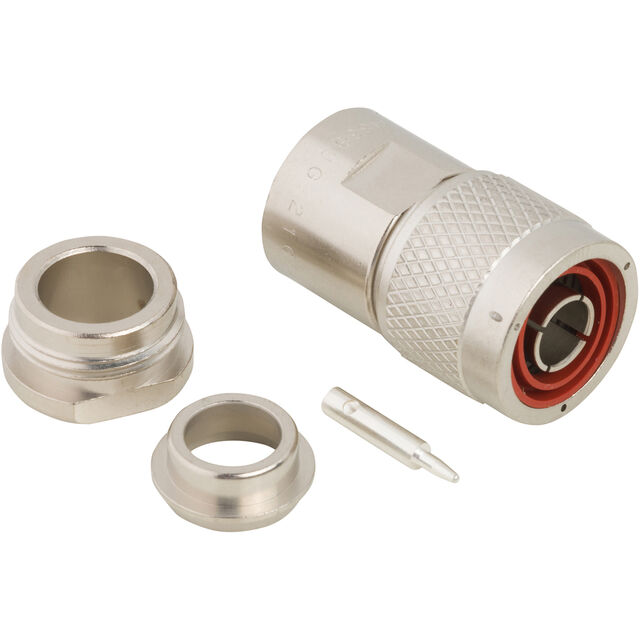

CONN N PLUG 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	082-96

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.15 dB
Mating Cycles	500
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1500 V

Part	Dielectric Material	Shield Termination	Center Contact Plating	Voltage Rating	Connector Style	Mating Cycles	Housing Color	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Impedance	Frequency - Max [Max]	Contact Termination	Insertion Loss	Body Material	Number of Ports	Body Finish	Cable Group
Amphenol RF 082-96	Polytetrafluoroethylene (PTFE)	Clamp	Silver	1500 V	N Type	500	Silver	Brass	-65 ░C	165 °C	Male Pin Plug	50 Ohms	11 GHz	Solder	0.15 dB	Brass	1	Nickel	213 214 225 302 393 87 8A 9 9A 9B RG-8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Solder
