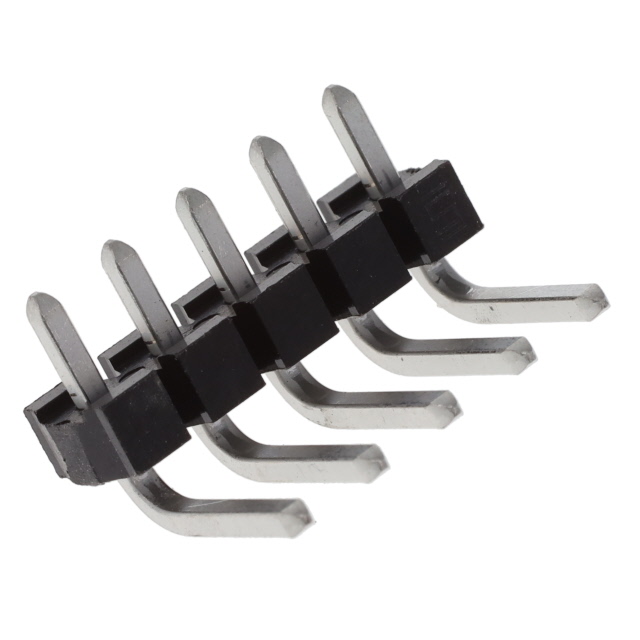

FWJ-05-02-T-S-RA

Active

Samtec Inc.

CONN HEADER R/A 5POS 3.96MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER R/A 5POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	FWJ-05-02-T-S-RA

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	600 VAC, 845 VDC

Part	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Insulation Color	Contact Shape	Insulation Material	Overall Contact Length	Overall Contact Length	Connector Type	Shrouding	Number of Positions Loaded	Contact Type	Mounting Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Termination	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Fastening Type	Number of Rows
Samtec Inc. FWJ-05-01-T-S	11.43 mm	0.45 in	4.45 mm	0.175 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	0.75 in	19.05 mm	Header	Unshrouded	All	Male Pin	Through Hole	UL94 V-0	0.156 in	3.96 mm	Solder	0.125 in	3.18 mm	Phosphor Bronze	105 ░C	-55 °C	600 VAC 845 VDC	Push-Pull	1
Samtec Inc. FWJ-05-01-TM-S	11.43 mm	0.45 in	4.45 mm	0.175 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)	0.75 in	19.05 mm	Header	Unshrouded	All	Male Pin	Through Hole	UL94 V-0	0.156 in	3.96 mm	Solder	0.125 in	3.18 mm	Phosphor Bronze	105 ░C	-55 °C	600 VAC 845 VDC	Push-Pull	1
Samtec Inc. FWJ-05-02-T-S-RA	8.13 mm	0.32 in	4.45 mm	0.175 in	Tin	Black	Square	Polybutylene Terephthalate (PBT)			Header	Unshrouded	All	Male Pin	Through Hole Right Angle	UL94 V-0	0.156 in	3.96 mm	Solder	0.25 in	6.35 mm	Phosphor Bronze	105 ░C	-55 °C	600 VAC 845 VDC	Push-Pull	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 5 position 0.156" (3.96mm)
