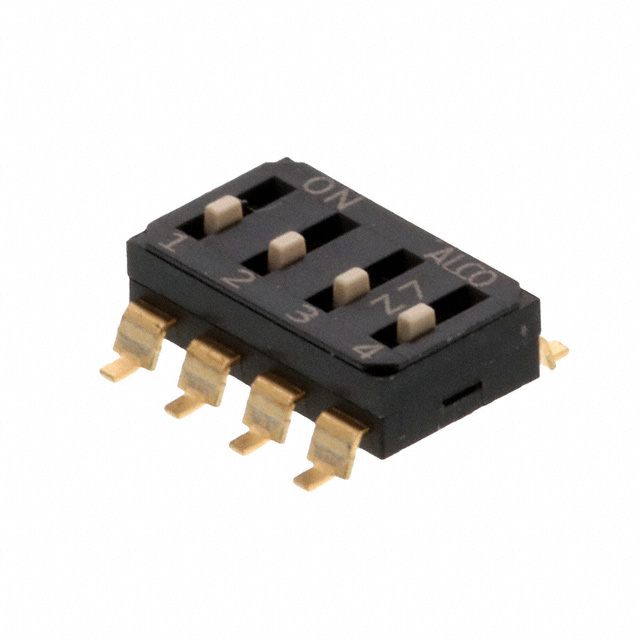

EDS04SGNNTU04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EDS04SGNNTU04Q

Active

TE Connectivity Raychem Cable Protection

SWITCH SLIDE DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EDS04SGNNTU04Q

Actuator Level	Raised
Actuator Type	Slide (Standard)
Body Material	Nylon, Polyamide (PA)
Circuit	SPST
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	25 mA
Electrical Life	2000 Steps
Height Above Board	3.8 mm
Height Above Board	0.15 "
Length	10.06 mm
Length	0.396 "
Mechanical Life	2000 Cycles
Mounting Type	Surface Mount
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

EDS04 Series

Part	Contact Finish	Length	Length	Contact Material	Number of Positions	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Current Rating (Amps)	Voltage Rating	Actuator Level	Height Above Board	Height Above Board	Body Material	Pitch [x]	Pitch	Pitch [x]	Mounting Type	Termination Style	Actuator Type	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection EDS04SNNNTU04Q	Gold	10.06 mm	0.396 "	Copper Alloy	4	2000 Cycles	2000 Steps	85 °C	-20 C	SPST	25 mA	24 VDC	Raised	0.152 in	3.85 mm	Nylon Polyamide (PA)	0.1 in	Full	2.54 mm	Surface Mount	J Lead	Slide (Standard)
TE Connectivity Raychem Cable Protection EDS04SNNNTR04Q	Gold	10.06 mm	0.396 "	Copper Alloy	4	2000 Cycles	2000 Steps	85 °C	-20 C	SPST	25 mA	24 VDC	Raised	0.152 in	3.85 mm	Nylon Polyamide (PA)	0.1 in	Full	2.54 mm	Surface Mount	J Lead	Slide (Standard)
TE Connectivity Raychem Cable Protection EDS04SGNNTU04Q	Gold	10.06 mm	0.396 "	Copper Alloy	4	2000 Cycles	2000 Steps	85 °C	-20 C	SPST	25 mA	24 VDC	Raised	0.15 "	3.8 mm	Nylon Polyamide (PA)	0.1 in	Full	2.54 mm	Surface Mount	Gull Wing	Slide (Standard)
TE Connectivity Raychem Cable Protection EDS04SNRSTU04Q	Gold	10.06 mm	0.396 "	Copper Alloy	4	2000 Cycles	2000 Steps	85 °C	-20 C	SPST	25 mA	24 VDC	Flush Recessed			Nylon Polyamide (PA)	0.1 in	Full	2.54 mm	Surface Mount	J Lead	Slide (Standard)	0.136 in	3.45 mm
TE Connectivity Raychem Cable Protection EDS04SNRNTR04Q	Gold	10.06 mm	0.396 "	Copper Alloy	4	2000 Cycles	2000 Steps	85 °C	-20 C	SPST	25 mA	24 VDC	Flush Recessed			Nylon Polyamide (PA)	0.1 in	Full	2.54 mm	Surface Mount	J Lead	Slide (Standard)	0.136 in	3.45 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.30
		10	$ 1.26
		47	$ 1.15
		141	$ 1.00
		282	$ 0.92

Description

General part information

EDS04 Series

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
