3330-2-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

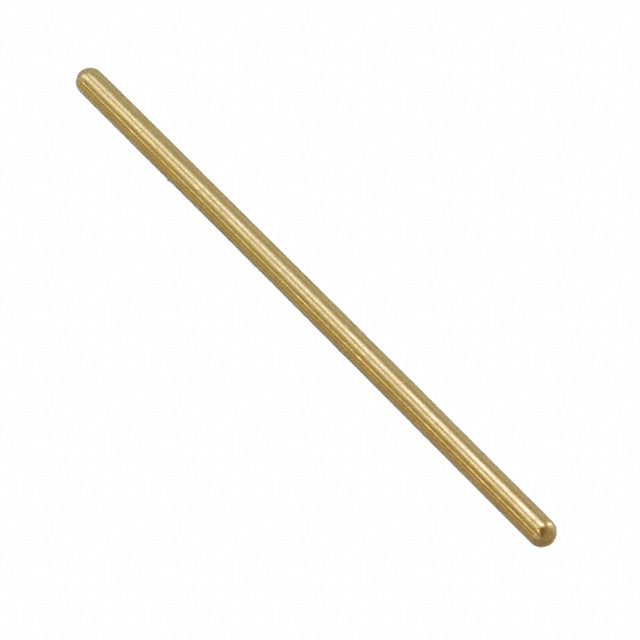

CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
Documents3330-2-00-15-00-00-03-0
3330-2-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.030DIA GOLD
Deep-Dive with AI
Documents3330-2-00-15-00-00-03-0
Technical Specifications
Parameters and characteristics for this part
| Specification | 3330-2-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Insulation | Non-Insulated |
| Length - Overall | 19.05 mm |
| Length - Overall [x] | 0.75 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.76 mm |
| Terminal Style | Smooth |
| Terminal Type | Single Post |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.27 | |||
| 100 | $ 0.25 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.21 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
Description
General part information
3330-2 Series
Single Post Terminal Connector Through Hole Gold 0.030" (0.76mm) Dia
Documents
Technical documentation and resources
