DMG564060R
UnknownPanasonic Industrial Automation Sales
TRANS PREBIAS NPN/PNP SMINI6
Deep-Dive with AI
Search across all available documentation for this part.
DMG564060R
UnknownPanasonic Industrial Automation Sales
TRANS PREBIAS NPN/PNP SMINI6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMG564060R |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 100 mA |
| Current - Collector Cutoff (Max) [Max] | 500 nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 160 hFE |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Flat Leads |
| Resistor - Base (R1) | 4.7 kOhms |

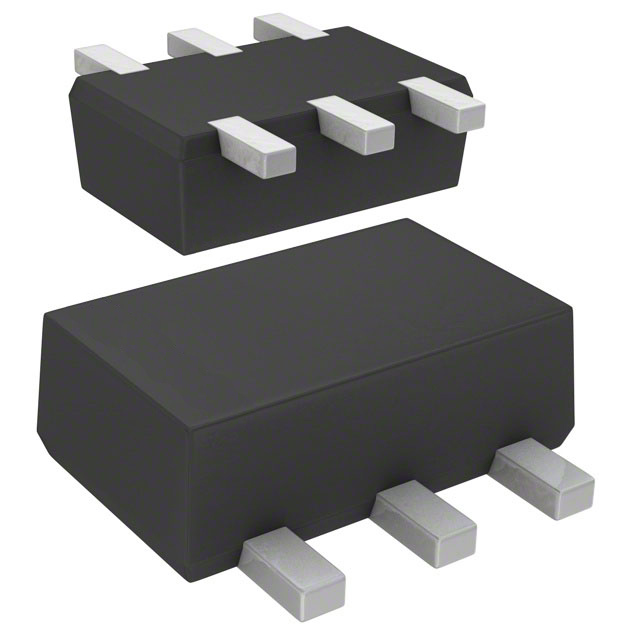

| Supplier Device Package | SMini6-F3-B |
| Transistor Type | 1 NPN, 1 PNP |
| Vce Saturation (Max) @ Ib, Ic | 250 mV |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.12 | |
| 6000 | $ 0.12 | |||
| 9000 | $ 0.10 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.10 | |||
Description
General part information
DMG56406 Series
Pre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 150mW Surface Mount SMini6-F3-B
Documents
Technical documentation and resources
No documents available
