SSF-LXH305SRD

Active

Lumex Opto/Components Inc.

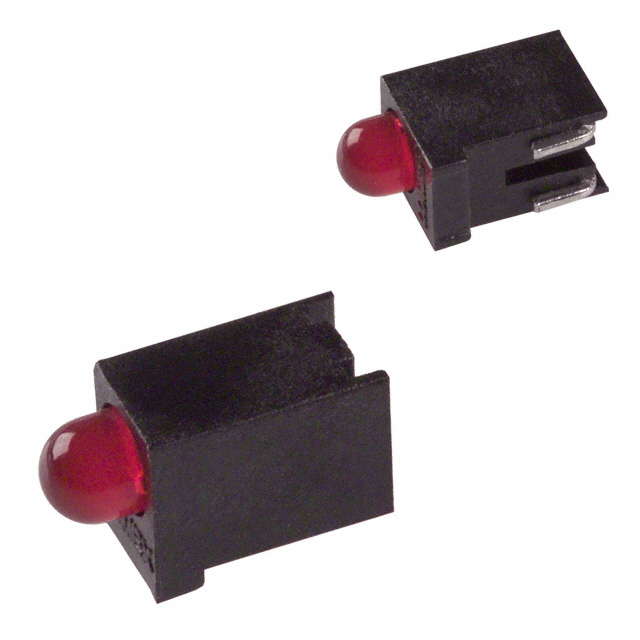

LED CBI T-3MM RED DIFF SMD RA

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED CBI T-3MM RED DIFF SMD RA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 1.7V 20mA Surface Mount, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

LED CBI 3MM YELLOW SMD RA

Part	Color	Lens Type	Voltage Rating	Wavelength - Peak	Mounting Type	Configuration	Lens Style	Millicandela Rating	Lens Size	Lens Size	Viewing Angle
Lumex Opto/Components Inc. SSF-LXH305YD-TR	Yellow	Diffused, Tinted	2.1 V	585 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SID-TR	Red	Diffused, Tinted	2 V	636 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305GD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SYD	Yellow	Diffused, Tinted	2.1 V	590 nm	Surface Mount, Right Angle	Single		250 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305GD	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single		30 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SRD-TR	Red	Diffused, Tinted	1.7 V	660 nm	Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SGD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	150 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305ID	Red	Diffused, Tinted	2 V	635 nm	Surface Mount, Right Angle	Single		40 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SOD-TR		Diffused, Tinted	2.1 V	610 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305USBD-TR	Blue	Diffused, Tinted			Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °
