SSF-LXH305USBD-TR

Active

Lumex Opto/Components Inc.

LED CBI 3MM BLU DIFF SMD RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH305USBD-TR

Active

Lumex Opto/Components Inc.

LED CBI 3MM BLU DIFF SMD RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 4.54
		10	$ 3.21
	Digi-Reel®	1	$ 4.54
		10	$ 3.21

Description

General part information

SSF-LXH305 Series

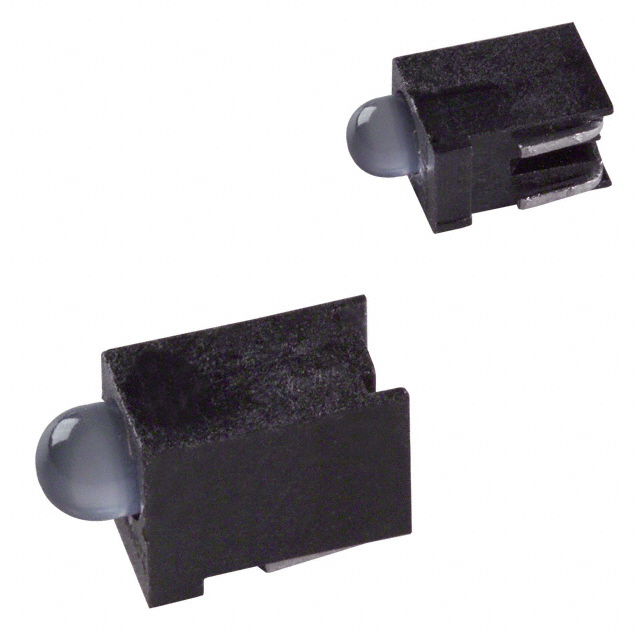

LED Circuit Board Indicator LED Circuit Board Indicator Single Blue Diffused, Tinted 3.5V 20mA Round with Domed Top 3mm, T-1 Surface Mount, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH305USBD-TR	SSF-LXH305 Series

Color	Blue	Yellow, Red, Green, Blue
Configuration	Single	Single
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Type	Tinted, Diffused	Tinted, Diffused
Millicandela Rating	80 mcd	30 - 250 mcd
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Viewing Angle	60 °	60 °
Voltage Rating	-	1.7 - 2.1 V
Wavelength - Peak	-	565 - 660 nm

SSF-LXH305 Series

LED CBI 3MM YELLOW SMD RA

Part	Color	Lens Type	Voltage Rating	Wavelength - Peak	Mounting Type	Configuration	Lens Style	Millicandela Rating	Lens Size	Lens Size	Viewing Angle
Lumex Opto/Components Inc. SSF-LXH305YD-TR	Yellow	Diffused, Tinted	2.1 V	585 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SID-TR	Red	Diffused, Tinted	2 V	636 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305GD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	30 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SYD	Yellow	Diffused, Tinted	2.1 V	590 nm	Surface Mount, Right Angle	Single		250 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305GD	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single		30 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SRD-TR	Red	Diffused, Tinted	1.7 V	660 nm	Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305SGD-TR	Green	Diffused, Tinted		565 nm	Surface Mount, Right Angle	Single	Round with Domed Top	150 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305ID	Red	Diffused, Tinted	2 V	635 nm	Surface Mount, Right Angle	Single		40 mcd			60 °
Lumex Opto/Components Inc. SSF-LXH305SOD-TR		Diffused, Tinted	2.1 V	610 nm	Surface Mount, Right Angle	Single	Round with Domed Top	100 mcd	3 mm	T-1	60 °
Lumex Opto/Components Inc. SSF-LXH305USBD-TR	Blue	Diffused, Tinted			Surface Mount, Right Angle	Single	Round with Domed Top	80 mcd	3 mm	T-1	60 °
