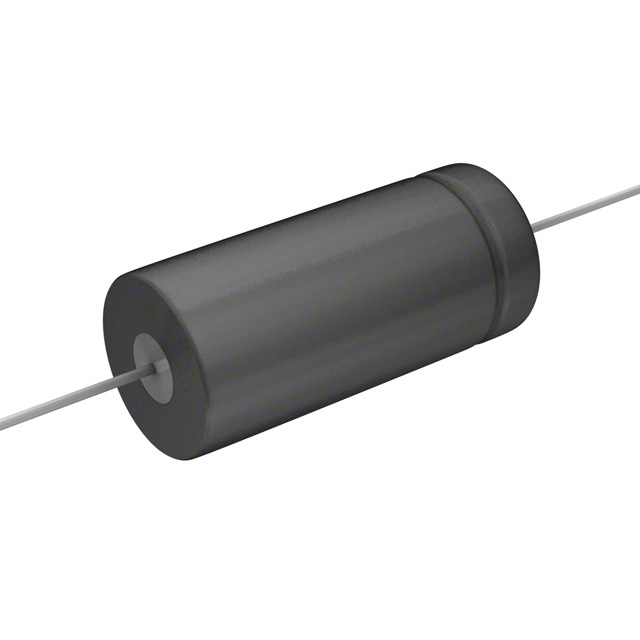

TCG101T150J1L

Obsolete

Cornell Dubilier Knowles

CAP ALUM 100UF 150V AXIAL TH

Search across all available documentation for this part.

Obsolete

Cornell Dubilier Knowles

CAP ALUM 100UF 150V AXIAL TH

Technical Specifications

Parameters and characteristics for this part

Specification	TCG101T150J1L

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	696 mOhm
Lifetime @ Temp.	1000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Can, Axial
Polarization	Polar
Ripple Current @ High Frequency	867.68 mA
Ripple Current @ Low Frequency	748 mA
Size / Dimension [diameter]	0.75 "
Size / Dimension [diameter]	19.05 mm
Size / Dimension [x]	41.28 mm
Size / Dimension [x]	1.625 "
Tolerance [Max]	50 %
Tolerance [Min]	-10 %
Voltage - Rated	150 V

CAP ALUM 100UF 150V AXIAL TH

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Lifetime @ Temp.	Applications	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Capacitance	Tolerance [Max]	Tolerance [Min]	Package / Case	Polarization	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Rated
Cornell Dubilier Knowles TCG101T150J1L	85 °C	-40 °C	Through Hole	1000 Hrs	General Purpose	748 mA	696 mOhm	100 µF	50 %	-10 %	Axial, Can	Polar	867.68 mA	0.75 "	19.05 mm	41.28 mm	1.625 "	150 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 µF 150 V Aluminum Electrolytic Capacitors Axial, Can 696mOhm @ 120Hz 1000 Hrs @ 85°C
