Q16F5BXXHR12E3BF

Active

APEM

LED INDICATOR 16MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

APEM

LED INDICATOR 16MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Lamp Color	Lens Color	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Ratings	Ingress Protection	Voltage	Lens Size [diameter]	Type	Lens Transparency	Millicandela Rating
APEM Q16F5BXXHR12E3BF	Wire Leads - 7.87" (200.00mm)	Red	Red	Round	0.63 in	16 mm	DC	IP67	12 V	18.3 mm	LED	Diffused	800 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

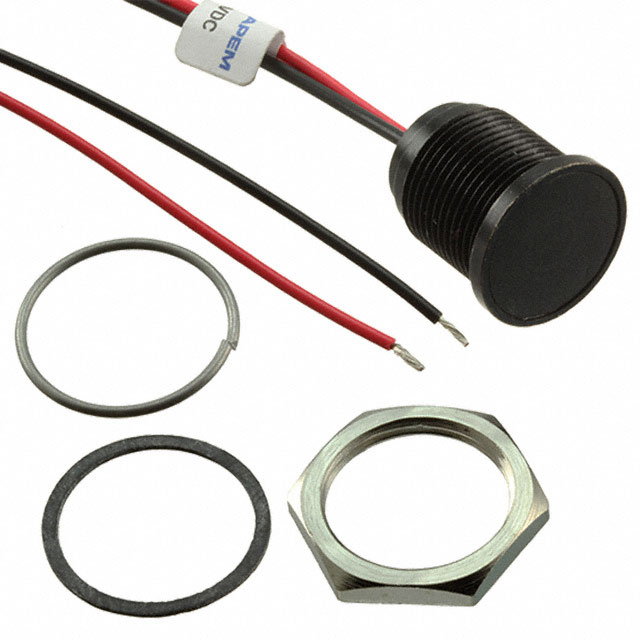

LED Panel Indicator Red Diffused 12V 20mA Wire Leads - 7.87" (200.00mm)

Technical documentation and resources
