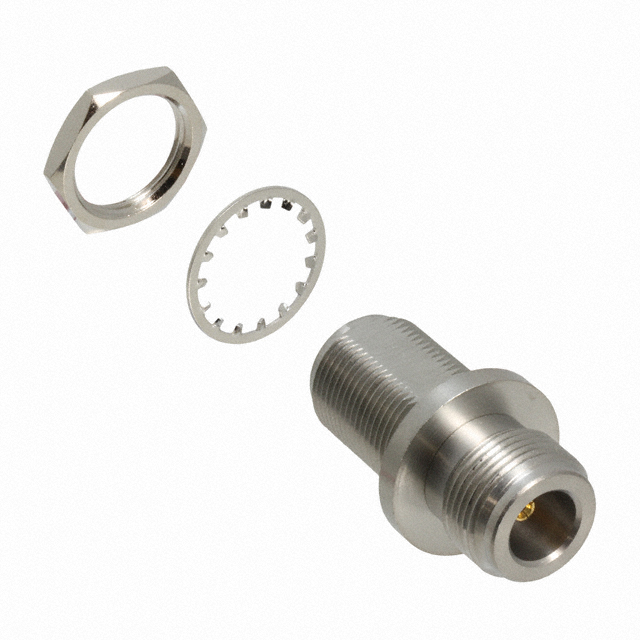

082-6348

Active

Amphenol RF

CONN ADAPT JACK-JACK N 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT JACK-JACK N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	082-6348

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Includes	1 Gasket, 1 Connector, 1 Nut, 1 Lockwasher
Mating Cycles	1000
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Center Contact Plating	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Includes	Impedance	Convert From (Adapter End)	Adapter Type	Style	Mating Cycles	Body Material	Adapter Series	Conversion Type	Convert To (Adapter End)	Center Contact Material	Center Gender	Frequency - Max [Max]
Amphenol RF 082-6348	Polytetrafluoroethylene (PTFE)	Gold	Bulkhead	-65 ░C	165 °C	1 Connector 1 Gasket 1 Lockwasher 1 Nut	50 Ohms	Female Socket N Jack	Jack to Jack	Straight	1000	Stainless Steel	N to N	Same Series	Female Socket N Jack	Phosphor Bronze	Female to Female	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
