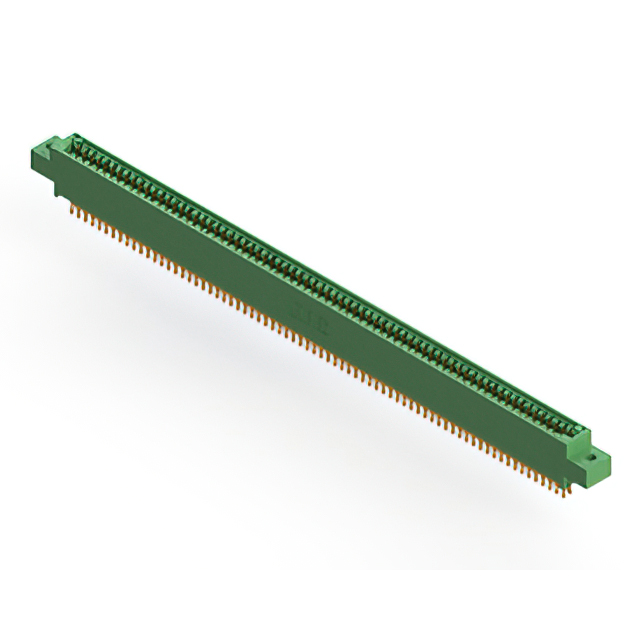

345-144-555-802

Active

EDAC Inc.

CONN EDGE DUAL FML 144POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-144-555-802

Active

EDAC Inc.

CONN EDGE DUAL FML 144POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-144-555-802

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	144
Number of Positions/Bay/Row [custom]	72
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

345-144 Series

...

Part	Pitch [x]	Pitch [x]	Termination	Material - Insulation	Number of Rows	Color	Termination Rows	Number of Positions/Bay/Row [custom]	Card Type	Gender	Flange Feature	Contact Material	Features	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions	Contact Type	Flange Feature	Flange Feature
EDAC Inc. 345-144-500-258	2.54 mm	0.1 in	Solder Eyelet(s)	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Guides	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-500-812	2.54 mm	0.1 in	Solder Eyelet(s)	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	Side Mount Opening Unthreaded	Copper Alloy		Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-144-555-802	2.54 mm	0.1 in	Solder Eyelet(s)	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female		Copper Alloy	Card Extender	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-144-523-512	2.54 mm	0.1 in	Solder	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	Side Mount Opening Unthreaded	Copper Alloy		Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-144-542-507	2.54 mm	0.1 in	Wire Wrap	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	M3 Threaded Insert Top Mount Opening	Copper Alloy		Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-524-878	2.54 mm	0.1 in	Solder	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Card Guides	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-500-558	2.54 mm	0.1 in	Solder Eyelet(s)	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	4-40 Threaded Insert Top Mount Opening	Copper Alloy	Card Guides	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-559-208	2.54 mm	0.1 in	Wire Wrap	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy		Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-544-278	2.54 mm	0.1 in	Wire Wrap	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Card Guides	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever
EDAC Inc. 345-144-560-512	2.54 mm	0.1 in	Solder	Polyester Thermoplastic	2	Green	2	72	Non Specified - Dual Edge	Female	Side Mount Opening Unthreaded	Copper Alloy	Card Extender	Gold	-40 °C	105 ░C	Dual	10 Áin	0.25 Ám	Board Edge Straddle Mount	1.37 mm	0.054 "	1.78 mm	0.07 in	144	Cantilever	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 19.37

Description

General part information

345-144 Series

144 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
