51025-05-0100-01

Active

CnC Tech, LLC

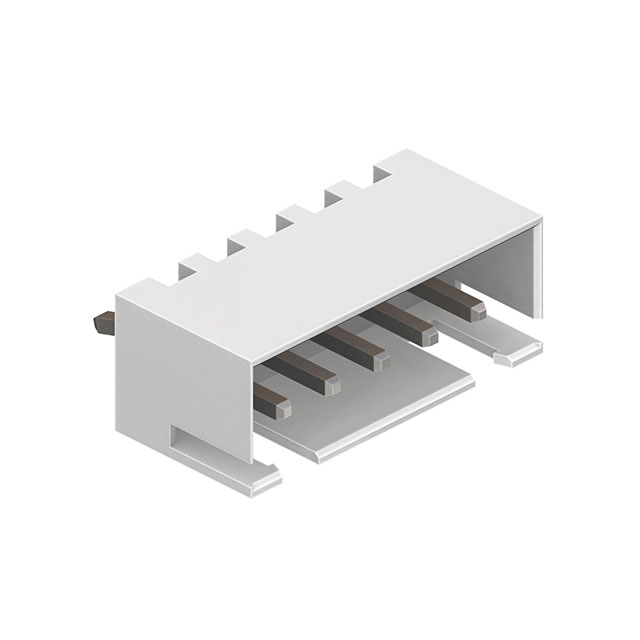

WIRE-TO BOARD WAFER, 2.5MM, 5 CO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

51025-05-0100-01

Active

CnC Tech, LLC

WIRE-TO BOARD WAFER, 2.5MM, 5 CO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51025-05-0100-01

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	White
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VDC

51025 Series

Part	Connector Type	Contact Shape	Contact Type	Material Flammability Rating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Termination	Insulation Material	Contact Material	Mounting Type	Voltage Rating	Current Rating (Amps)	Style	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions
CnC Tech, LLC 51025-05-0100-01	Header	Square	Male Pin	UL94 V-0	White	-25 °C	85 °C	Detent Lock	7 mm	0.276 in	2.5 mm	0.098 in	Tin	1	All	Kinked Pin Solder	Polyamide (PA66) Nylon 6/6	Brass	Through Hole	250 VDC	3 A	Board to Cable/Wire	Shrouded - 4 Wall	0.134 in	3.4 mm
CnC Tech, LLC 51025-11-0100-01	Header	Square	Male Pin	UL94 V-0	White	-25 °C	85 °C	Detent Lock	7 mm	0.276 in	2.5 mm	0.098 in	Tin	1	All	Kinked Pin Solder	Polyamide (PA66) Nylon 6/6	Brass	Through Hole	250 VDC	3 A	Board to Cable/Wire	Shrouded - 4 Wall	0.134 in	3.4 mm	11
CnC Tech, LLC 51025-06-0100-01	Header	Square	Male Pin	UL94 V-0	White	-25 °C	85 °C	Detent Lock	7 mm	0.276 in	2.5 mm	0.098 in	Tin	1	All	Kinked Pin Solder	Polyamide (PA66) Nylon 6/6	Brass	Through Hole	250 VDC	3 A	Board to Cable/Wire	Shrouded - 4 Wall	0.134 in	3.4 mm	6
CnC Tech, LLC 51025-07-0100-01	Header	Square	Male Pin	UL94 V-0	White	-25 °C	85 °C	Detent Lock	7 mm	0.276 in	2.5 mm	0.098 in	Tin	1	All	Kinked Pin Solder	Polyamide (PA66) Nylon 6/6	Brass	Through Hole	250 VDC	3 A	Board to Cable/Wire	Shrouded - 4 Wall	0.134 in	3.4 mm	7
CnC Tech, LLC 51025-09-0100-01	Header	Square	Male Pin	UL94 V-0	White	-25 °C	85 °C	Detent Lock	7 mm	0.276 in	2.5 mm	0.098 in	Tin	1	All	Kinked Pin Solder	Polyamide (PA66) Nylon 6/6	Brass	Through Hole	250 VDC	3 A	Board to Cable/Wire	Shrouded - 4 Wall	0.134 in	3.4 mm	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.14
		10	$ 0.12
		100	$ 0.09
		500	$ 0.08
		1000	$ 0.06
		5000	$ 0.06

Description

General part information

51025 Series

Connector Header Through Hole 5 position 0.098" (2.50mm)
