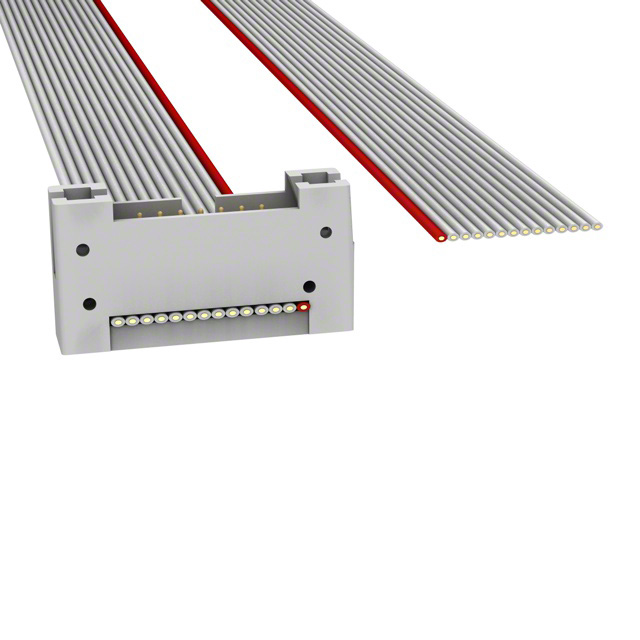

H1KXH-1436G
ActiveAssmann WSW Components
IDC CBL - HHPK14H/AE14G/X
Deep-Dive with AI
Search across all available documentation for this part.
H1KXH-1436G
ActiveAssmann WSW Components
IDC CBL - HHPK14H/AE14G/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H1KXH-1436G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Plug to Cable |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Features | Polarizing Key |
| Length [x] | 3 ft |
| Length [x] | 914.4 mm |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.32 | |
| 10 | $ 4.83 | |||
| 25 | $ 4.58 | |||
| 50 | $ 4.47 | |||
| 100 | $ 4.26 | |||
| 250 | $ 3.73 | |||
| 500 | $ 3.62 | |||
| 1000 | $ 3.09 | |||
| 2500 | $ 2.88 | |||
Description
General part information
H1KXH-14 Series
14 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
