52-271.022
ActiveEAO

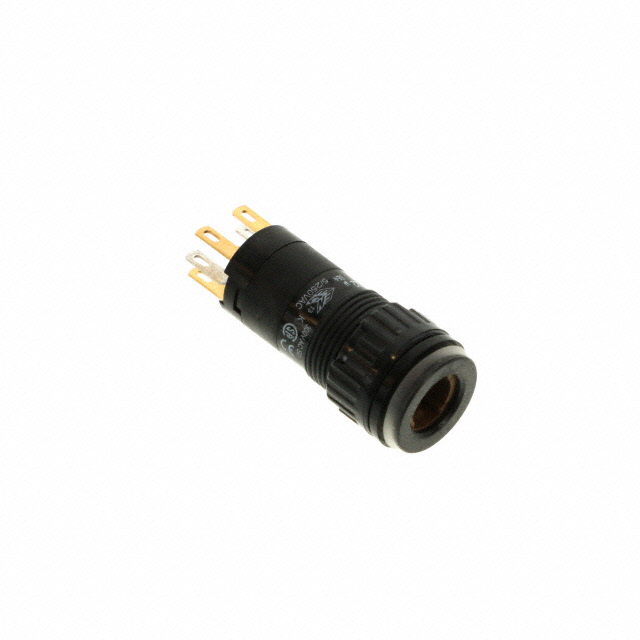

SWITCH SELECT 2POS DPST 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
52-271.022
ActiveEAO
SWITCH SELECT 2POS DPST 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 52-271.022 | 52-271 Series |
|---|---|---|
| Approval Agency | CB, CSA, UL, CE | CB, CSA, UL, CE |
| Circuit | DPST-NO/NC | DPST-NO/NC |
| Current Rating (Amps) | 5 A | 5 A |
| Illumination | Illuminated | Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 1000000 Cycles | 1000000 Cycles |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 55 °C | 55 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.2 mm | 16.2 mm |
| Switch Function | On-Off, Off-On | On-Off, Off-On |
| Termination Style | 0.11 in | 0.11 in |
| Termination Style | Quick Connect, Solder | Quick Connect, Solder, Solder Lug |
| Termination Style | 2.8 mm | 2.8 mm |
| Type | Standard | Standard |
| Voltage Rating - AC | 250 V | 250 V |
52-271 Series
SWITCH SELECT 2POS DPST 5A 250V
| Part | Number of Positions | Ingress Protection | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Illumination | Termination Style | Termination Style | Termination Style | Circuit | Type | Approval Agency | Mechanical Life | Voltage Rating - AC | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 52-271.022 | 2 | IP65 - Dust Tight, Water Resistant | 5 A | 55 °C | -25 °C | Off-On, On-Off | Illuminated | 0.11 in | Quick Connect, Solder | 2.8 mm | DPST-NO/NC | Standard | CB, CE, CSA, UL | 1000000 Cycles | 250 V | 16.2 mm |
EAO 52-271.025 | 2 | IP65 - Dust Tight, Water Resistant | 5 A | 55 °C | -25 °C | Off-On, On-Off | Illuminated | Solder Lug | DPST-NO/NC | Standard | CB, CE, CSA, UL | 1000000 Cycles | 250 V | 16.2 mm | ||
EAO 52-271.012 | 2 | IP65 - Dust Tight, Water Resistant | 5 A | 55 °C | -25 °C | Off-On, On-Off | Illuminated | Solder Lug | DPST-NO/NC | Standard | CB, CE, CSA, UL | 1000000 Cycles | 250 V | 16.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.74 | |
| 10 | $ 46.18 | |||
| 25 | $ 44.03 | |||
| 50 | $ 41.08 | |||
| 100 | $ 39.47 | |||
| 250 | $ 36.78 | |||
Description
General part information
52-271 Series
Selector Switch 2 Position DPST-NO/NC 5A (AC) 250 V Panel Mount
