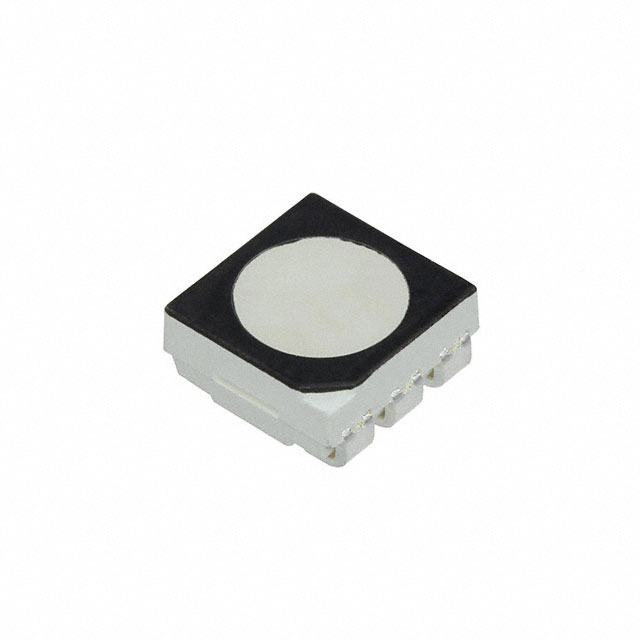

SLV6A-FKB-CK1P1G1BB7R3R3

Obsolete

Cree LED

LED RGB 6PLCC SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED RGB 6PLCC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SLV6A-FKB-CK1P1G1BB7R3R3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	2.6 mm
Lens Size [diameter]	4.2 mm
Millicandela Rating [custom]	420 mcd
Millicandela Rating [custom]	840 mcd
Millicandela Rating [custom]	1680 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, J-Lead
Size / Dimension [x]	5.5 mm
Size / Dimension [y]	5.3 mm
Supplier Device Package	6-PLCC
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	2 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Wavelength - Dominant	622 nm, 530 nm, 470 nm

Part	Height (Max) [Max] [z]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Wavelength - Dominant	Package / Case	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Lens Size [diameter]	Configuration
Cree LED SLV6A-FKB-CK1P1G1BB7R3R3	2.6 mm	420 mcd	840 mcd	1680 mcd	Blue Green Red	3.2 V	2 V	3.2 V	20 mA	20 mA	20 mA	470 nm 530 nm 622 nm	6-SMD J-Lead	6-PLCC	5.5 mm	5.3 mm	Surface Mount	4.2 mm	Independent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 622nm Red, 530nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.2V Green, 3.2V Blue 6-SMD, J-Lead
