245130-01-06.00
ActiveAmphenol RF

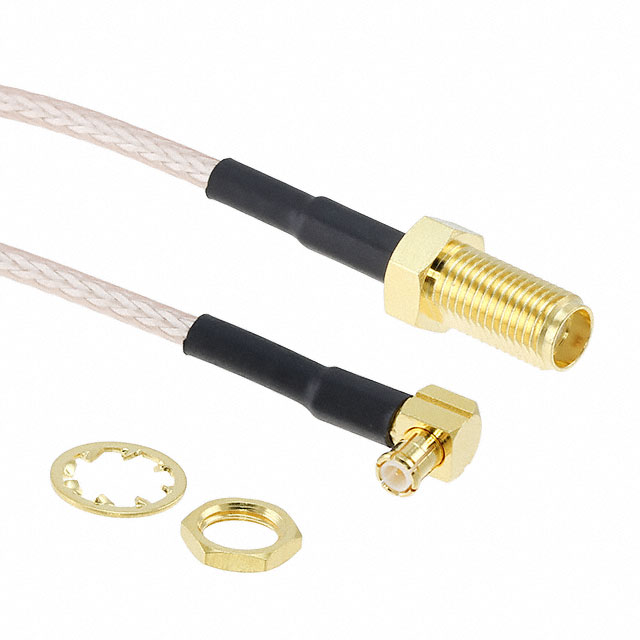

CBL ASSY SMA-MCX JACK-PLUG 6"
Deep-Dive with AI
Search across all available documentation for this part.
245130-01-06.00
ActiveAmphenol RF
CBL ASSY SMA-MCX JACK-PLUG 6"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 245130-01-06.00 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | MCX Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Length | 152.4 mm |
| Length | 6 in |
| Overall Impedance | 50 Ohms |
| Style | SMA to MCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 27.25 | |
| 10 | $ 21.02 | |||
| 25 | $ 19.03 | |||
| 50 | $ 17.69 | |||
| 100 | $ 16.48 | |||
| 250 | $ 15.05 | |||
| 500 | $ 14.08 | |||
Description
General part information
245130 Series
Cable Assembly Coaxial SMA to MCX RG-316 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
