5380-4PG-318

Active

Conxall/Switchcraft

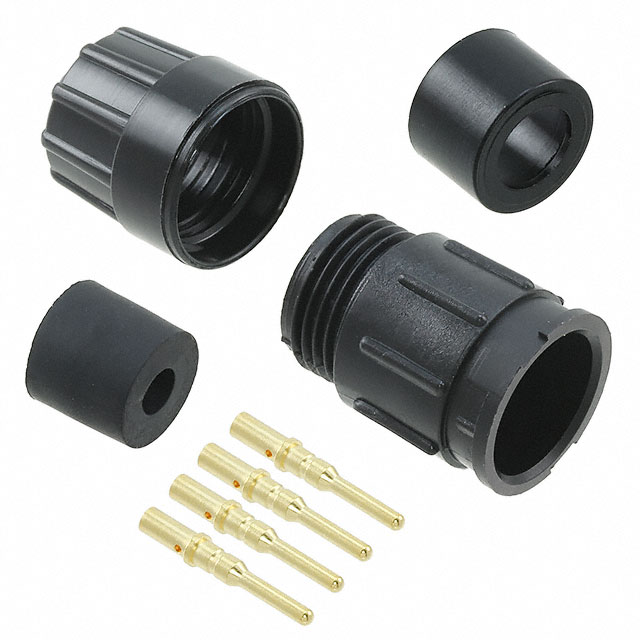

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5380-4PG-318

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.03
		10	$ 9.93
		25	$ 9.36
		50	$ 9.12
		100	$ 8.88
		300	$ 7.92
		500	$ 7.44
		1000	$ 6.57

Description

General part information

5380-4PG Series

4 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5380-4PG-318	5380-4PG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.24 - 0.3 in
Cable Opening	-	6.86 - 7.37 mm
Cable Opening	-	6.1 - 7.62 mm
Cable Opening	-	0.27 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

5380-4PG Series

CONN RCPT MALE 4POS GOLD CRIMP

Part	Features	Ingress Protection	Shielding	Contact Material	Orientation	Contact Finish - Mating	Backshell Material, Plating	Number of Positions	Primary Material	Termination	Connector Type	Voltage Rating	Color	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 5380-4PG-324	Backshell	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.24 in	6.86 mm	6.1 mm	0.27 in	Bayonet Lock
Conxall/Switchcraft 5380-4PG-528	Backshell, Cable Clamp	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.28 in	7.37 mm	7.11 mm	0.29 in	Bayonet Lock
Conxall/Switchcraft 5380-4PG-318	Backshell	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C					Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5380-4PG-328	Backshell	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.28 in	7.37 mm	7.11 mm	0.29 in	Bayonet Lock
Conxall/Switchcraft 5380-4PG-330	Backshell	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.3 in		7.62 mm	0.32 in	Bayonet Lock					8.13 mm
Conxall/Switchcraft 5380-4PG-530	Backshell, Cable Clamp	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.3 in		7.62 mm	0.32 in	Bayonet Lock					8.13 mm
Conxall/Switchcraft 5380-4PG-518	Backshell, Cable Clamp	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C					Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5380-4PG-524	Backshell, Cable Clamp	Weathertight	Unshielded	Brass	Keyed	Gold	Nylon, Polyamide (PA)	4	Plastic	Crimp	Male Pins, Receptacle	600 V	Black	Free Hanging (In-Line)	-40 °C	115 °C	0.24 in	6.86 mm	6.1 mm	0.27 in	Bayonet Lock
