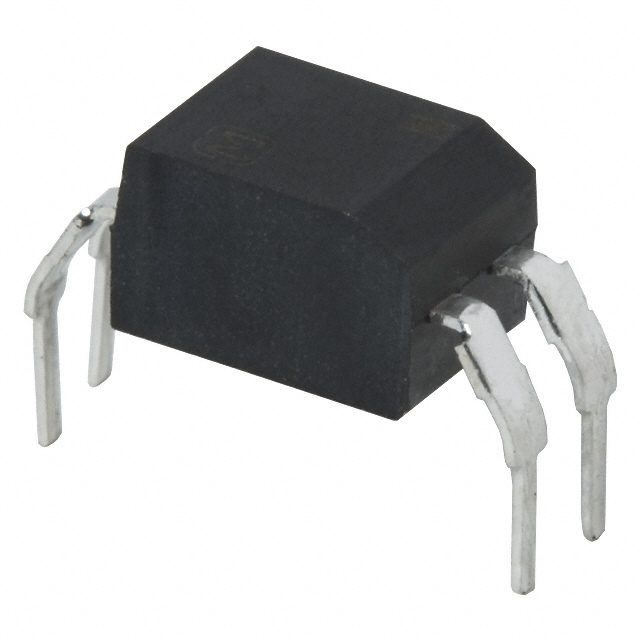

AQY277

Active

Panasonic Electric Works

SSR RELAY SPST-NO 650MA 0-200V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

AQY277

Active

Panasonic Electric Works

SSR RELAY SPST-NO 650MA 0-200V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 10.79
		10	$ 10.12
		25	$ 8.99
		50	$ 8.54
		100	$ 8.09
		250	$ 7.19
		500	$ 6.74
		1000	$ 6.29

Description

General part information

- Series

Solid State SPST-NO (1 Form A) 4-DIP (0.400", 10.16mm)

Documents

Technical documentation and resources

How to Read Date Codes

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AQY277	- Series

	-	-
Approval Agency	BSI, cURus	BSI, cURus, VDE, UR, TUV, CSA
Circuit	-	SPST-NO (1 Form A) x 2, SPST-NC (1 Form B), SPST-NO, SPST-NC, SPST-NC (1 Form B) x 2
Coil Current	-	8.3 - 120 mA
Coil Insulation	-	Class E
Coil Resistance	-	1.62 - 720 Ohms
Coil Type	-	Non Latching
Coil Voltage	-	4 - 24 VDC
Contact Form	-	DPDT (2 Form C), SPST-NO (1 Form A), SPDT (1 Form C), 4PDT (4 Form C)
Contact Material	-	Silver (Ag), Gold (Au), Silver Nickel (AgNi), Silver Alloy
Contact Rating (Current)	-	1 - 10 A
Load - Max Switching	-	90 - 2500 W
Load - Max Switching	-	60 - 440 VA
Load Current	-	1 - 700 mA
Mounting Type	Through Hole	Through Hole, Chassis Mount
Must Operate Voltage	-	2.1 - 18 VDC
Must Release Voltage	-	0.22 - 1.2 VDC
On-State Resistance (Max) [Max]	1.1 Ohms	1 - 700 Ohms
Operate Time	-	3 - 10 ms
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output Type	DC, AC	DC, AC, AC, Zero Cross, DC (RF)
Package / Case	4-DIP	4-DIP, 6-DIP, 4-SIP, 8-DIP, Hockey Puck
Package / Case	-	0.3 - 10.16 in
Package / Case	-	0.3 - 10.16 mm
Package / Case	-	7.62 mm
Relay Type	-	General Purpose, Telecom
Release Time	-	2 - 10 ms
Seal Rating	-	Sealed - Fully
Supplier Device Package	4-DIP	4-DIP, 6-DIP, 4-SIL, 8-DIP
Switching Voltage	-	30 - 277 VDC
Termination Style	PC Pin	PC Pin, Screw Terminal
Voltage - Input	1.16 VDC	1.14 - 2.3 VDC
Voltage - Input	-	32 V
Voltage - Input	-	4 V
Voltage - Load [Max]	200 V	60 - 1500 V
Voltage - Load [Min]	0 V	0 - 75 V

- Series

SSR RELAY SPST-NO 650MA 0-200V

...

Part	Package / Case	Voltage - Input	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	On-State Resistance (Max) [Max]	Termination Style	Approval Agency	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Load Current	Coil Type	Switching Voltage	Relay Type	Seal Rating	Must Operate Voltage	Coil Current	Release Time	Contact Rating (Current)	Contact Form	Coil Voltage	Load - Max Switching	Must Release Voltage	Coil Resistance	Contact Material	Operate Time	Load - Max Switching [Max]
Panasonic Electric Works AQY277	4-DIP	1.16 VDC	0 V	200 V	Through Hole	1.1 Ohms	PC Pin	BSI, cURus	4-DIP	AC, DC	85 °C	-40 °C
Panasonic Electric Works AQV253	6-DIP	1.14 VDC	0 V	250 V	Through Hole		PC Pin		6-DIP	AC, DC	85 °C	-40 °C	0.3 in	7.62 mm	200 mA
Panasonic Electric Works AQZ202	4-SIP	1.16 VDC	0 V	60 V	Through Hole	180 mOhms	PC Pin	UR, VDE	4-SIL	AC, DC	85 °C	-40 °C			3 A
Panasonic Electric Works AQV252	6-DIP	1.14 VDC	0 V	60 V	Through Hole	1.4 Ohms	PC Pin		6-DIP	AC, DC	85 °C	-40 °C	0.3 in	7.62 mm	400 mA
Panasonic Electric Works AQV203	6-DIP	2.3 V	0 V	250 V	Through Hole		PC Pin		6-DIP	AC, DC	85 °C	-40 °C	0.3 in	7.62 mm	200 mA
Panasonic Electric Works AQZ207	4-SIP	1.16 VDC	0 V	200 V	Through Hole	1.1 Ohms	PC Pin	UR, VDE	4-SIL	AC, DC	85 °C	-40 °C			1 A
Panasonic Electric Works TXD2-9V					Through Hole		PC Pin	BSI, cURus			85 °C	-40 °C				Non Latching	220 VDC	General Purpose	Sealed - Fully	6.75 VDC	22.2 mA	4 ms	2 A	DPDT (2 Form C)	9 VDC	440 W	0.9 VDC	405 Ohms	Gold (Au), Silver (Ag)	4 ms
Panasonic Electric Works AQV255	6-DIP	1.14 VDC	0 V	100 V	Through Hole	2.5 Ohms	PC Pin		6-DIP	AC, DC	85 °C	-40 °C	0.3 in	7.62 mm	350 mA
Panasonic Electric Works ALD124					Through Hole		PC Pin	CSA, TUV, UR, VDE			70 °C	-40 °C				Non Latching	30 VDC, 277 VAC	General Purpose		18 VDC	8.3 mA	10 ms	3 A	SPST-NO (1 Form A)	24 VDC	90 W, 831 VA	1.2 VDC	2.88 kOhms	Silver Nickel (AgNi)	10 ms
Panasonic Electric Works TK1-6V					Through Hole		PC Pin	CSA, UR			85 °C	-40 °C				Non Latching	220 VDC	General Purpose	Sealed - Fully	4.5 VDC	23.3 mA	2 ms	2 A	SPDT (1 Form C)			0.6 VDC	257 Ohms	Gold (Au), Silver (Ag)	3 ms	440 VA
