G3T22AP
ActiveNKK Switches

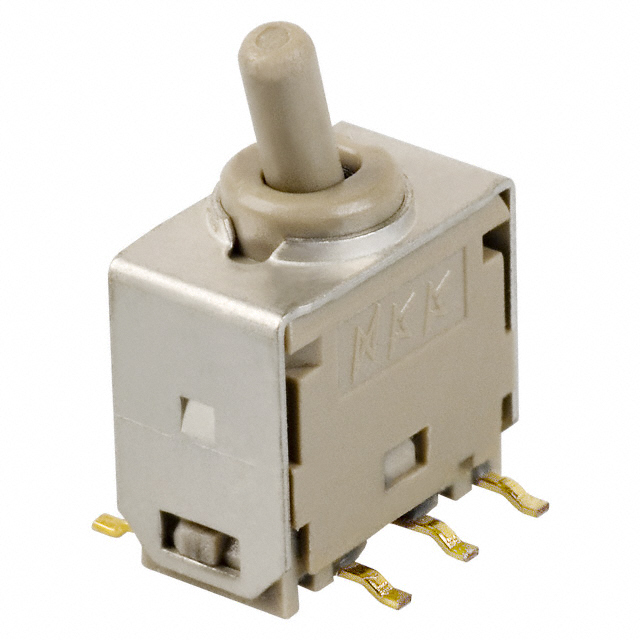

TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, DPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
G3T22AP
ActiveNKK Switches
TOGGLE SWITCH, ULTRA MINIATURE, ON-NONE-ON, DPDT, NON ILLUMINATED, G3T SERIES, SURFACE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G3T22AP |
|---|---|
| Actuator Length [x] | 3.81 mm |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Standard Round |
| Bushing Thread | Unthreaded |
| Circuit | DPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Process Sealed |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | On-On |
| Termination Style | Gull Wing |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
G3T22A Series
| Part | Bushing Thread | Illumination | Actuator Type | Actuator Length [x] | Actuator Material | Electrical Life | Voltage Rating - AC | Switch Function | Mounting Type | Termination Style | Voltage Rating - DC | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Unthreaded | Non-Illuminated | Standard Round | 3.81 mm | Polyphenylene Sulfide (PPS) | 50000 Cycles | 28 V | On-On | Surface Mount Right Angle | Gull Wing | 28 V | 0.4 VA | -30 ░C | 85 °C | DPDT | |
NKK Switches | Unthreaded | Non-Illuminated | Standard Round | 3.81 mm | Polyphenylene Sulfide (PPS) | 50000 Cycles | 28 V | On-On | Surface Mount | Gull Wing | 28 V | 0.4 VA | -30 ░C | 85 °C | DPDT | Process Sealed |
NKK Switches | Unthreaded | Non-Illuminated | Standard Round | 3.81 mm | Polyphenylene Sulfide (PPS) | 50000 Cycles | 28 V | On-On | Surface Mount | Gull Wing | 28 V | 0.4 VA | -30 ░C | 85 °C | DPDT | Process Sealed |
NKK Switches | Unthreaded | Non-Illuminated | Standard Round | 3.81 mm | Polyphenylene Sulfide (PPS) | 50000 Cycles | 28 V | On-On | Surface Mount | Gull Wing | 28 V | 0.4 VA | -30 ░C | 85 °C | DPDT | Process Sealed |
NKK Switches | Unthreaded | Non-Illuminated | Standard Round | 3.81 mm | Polyphenylene Sulfide (PPS) | 50000 Cycles | 28 V | On-On | Surface Mount | Gull Wing | 28 V | 0.4 VA | -30 ░C | 85 °C | DPDT | Process Sealed |
