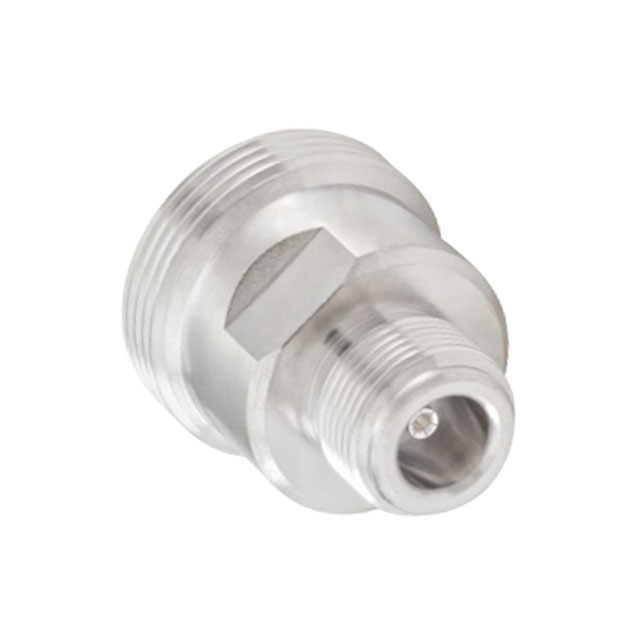

53K160-KIMN1

Active

Rosenberger

CONN ADAPT N JACK TO 7/16 JACK

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT N JACK TO 7/16 JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K160-KIMN1

Adapter Series	N to 7/16
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

Part	Body Finish	Adapter Type	Style	Impedance	Mating Cycles	Center Gender	Center Contact Material	Insertion Loss	Frequency - Max [Max]	Dielectric Material	Mounting Type	Adapter Series	Center Contact Plating	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Body Material
Rosenberger 53K160-KIMN1	White Bronze	Jack to Jack	Straight	50 Ohms	500	Female to Female	Beryllium Copper	0.05 dB	7.5 GHz	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	N to 7/16	Silver	7/16 Jack Female Socket	Female Socket N Jack	Between Series	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms
