7834-0000PR

Active

3M (TC)

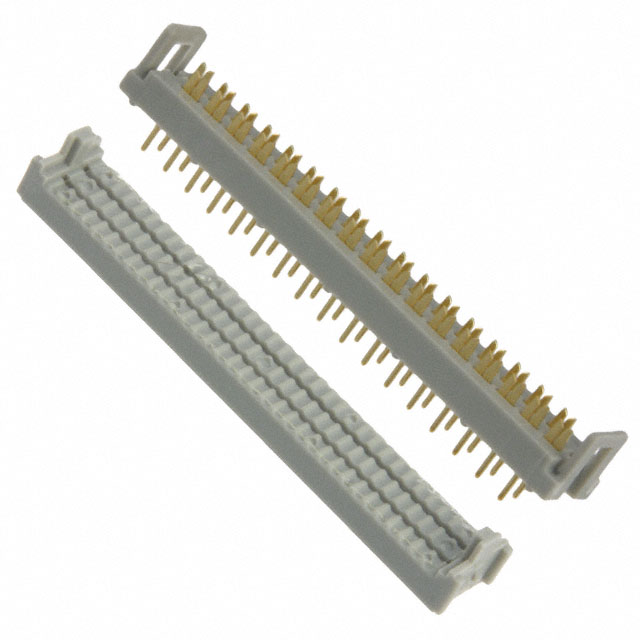

IDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

7834-0000PR

Active

3M (TC)

IDC CONNECTOR, BOARD IN CONNECTOR, 2.54 MM, 2 ROW, 34 CONTACTS, CABLE MOUNT, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	7834-0000PR

Board-Side Pitch	0.1 in
Board-Side Pitch	2.54 mm
Cable Pitch	1.27 mm
Cable Pitch	0.05 in
Cable Termination	IDC
Color	Gray
Connector Type	Ribbon Cable, DIP Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Features	Feed Through
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG, Solid or Stranded, 30 AWG, Solid, 26 AWG, Stranded

7834 Series

Part	Number of Positions	Number of Positions Loaded	Connector Type	Color	Board-Side Pitch	Board-Side Pitch	Number of Rows	Wire Gauge	Cable Pitch	Cable Pitch	Features	Row Spacing [x]	Row Spacing	Contact Finish	Contact Finish Thickness	Mounting Type	Cable Termination
3M (TC) 7834-0006PR	34	All	DIP Header Ribbon Cable	Gray	0.1 in	2.54 mm	2	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	1.27 mm	0.05 in	Feed Through	0.1 in	2.54 mm	Gold	Flash	Through Hole	IDC
3M (TC) 7834-0000PR	34	All	DIP Header Ribbon Cable	Gray	0.1 in	2.54 mm	2	26 AWG Stranded 28 AWG Solid or Stranded 30 AWG Solid	1.27 mm	0.05 in	Feed Through	0.1 in	2.54 mm	Gold	Flash	Through Hole	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.79
		10	$ 5.26
		100	$ 4.63
		500	$ 3.94
		1000	$ 3.36
Newark	Each	100	$ 4.50
		250	$ 3.96
		500	$ 3.85
		1000	$ 3.27

Description

General part information

7834 Series

The 7834-0000PR is a 34-way 0.100 x 0.100-inch Wire-to-board Connector with 2.8mm solder tail, gold-plated beryllium copper contacts and solder termination. This 78XX series wiremount PCB connector is glass filled polyester insulated, fits standard 0.100 x 0.100-inch header layout, uses less board area than 4-row design. 7.3 mm terminated height for applications requiring low-profile off the board, solder bumps facilitate board cleaning.
