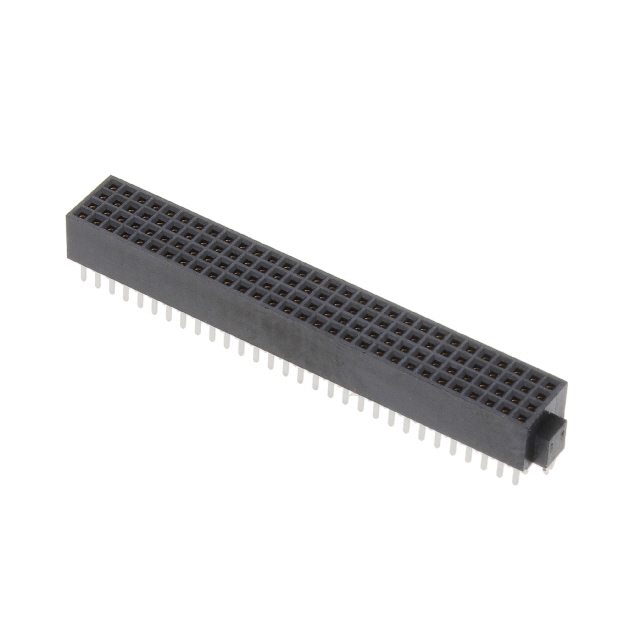

FOLC-130-01-L-Q-LC
ActiveSamtec Inc.
CONN RCPT 120POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
FOLC-130-01-L-Q-LC
ActiveSamtec Inc.
CONN RCPT 120POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FOLC-130-01-L-Q-LC |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 1.91 mm |
| Contact Length - Post [x] | 0.075 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2.6 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 120 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Termination | Solder |
FOLC-130 Series
| Part | Insulation Height | Insulation Height | Contact Shape | Termination | Mounting Type | Number of Positions Loaded | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Finish - Mating | Number of Positions | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Contact Finish - Post | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Insulation Material | Contact Material | Connector Type | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 10 çin | 0.25 çm | 0.12 in | 3.05 mm | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |
Samtec Inc. | 4.7 mm | 0.185 in | Square | Solder | Surface Mount Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 10 çin | 0.25 çm | 0.075 in | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | 1.91 mm | |
Samtec Inc. | 4.7 mm | 0.185 in | Square | Solder | Surface Mount Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 30 Áin | 0.76 Ám | 0.12 in | 3.05 mm | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 10 çin | 0.25 çm | 0.12 in | 3.05 mm | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 30 Áin | 0.76 Ám | 0.075 in | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | 1.91 mm | |
Samtec Inc. | 4.51 mm | 0.178 in | Square | Solder | Surface Mount | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |||
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 30 Áin | 0.76 Ám | 0.12 in | 3.05 mm | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 10 çin | 0.25 çm | 0.075 in | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | 1.91 mm | |
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 10 çin | 0.25 çm | 0.12 in | 3.05 mm | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | |
Samtec Inc. | 4.57 mm | 0.18 " | Square | Solder | Through Hole | All | 0.05 in | 1.27 mm | Black | Gold | 120 | 2.6 A | 0.05 in | 1.27 mm | Push-Pull | Tin | UL94 V-0 | 30 Áin | 0.76 Ám | 0.075 in | -55 °C | 125 °C | Female Socket | Liquid Crystal Polymer (LCP) | Beryllium Copper | Receptacle | 1.91 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 57.50 | |
| 10 | $ 44.57 | |||
| 100 | $ 35.19 | |||
Description
General part information
FOLC-130 Series
120 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
