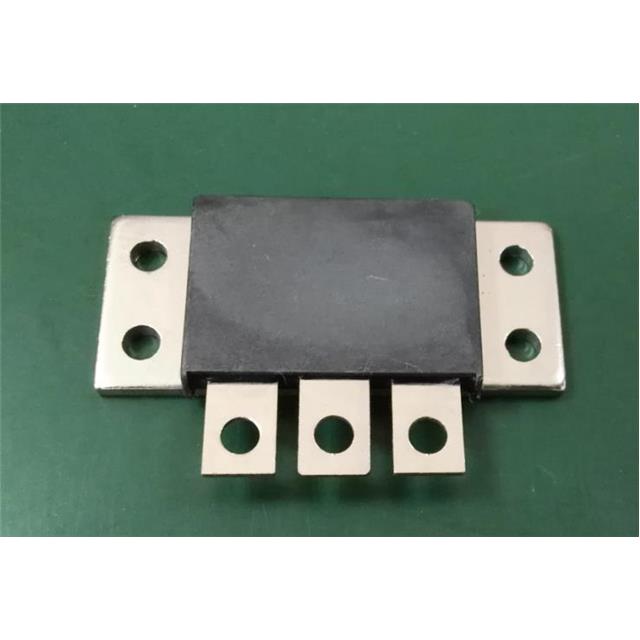

162CMQ030

Active

SMC Diode Solutions

DIODE MOD SCHOTT 30V 80A TO249AA

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOTT 30V 80A TO249AA

Technical Specifications

Parameters and characteristics for this part

Specification	162CMQ030

Current - Average Rectified (Io) (per Diode) [custom]	80 A
Current - Reverse Leakage @ Vr	5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-249AA
Speed	200 mA, 500 ns
Supplier Device Package	TO-249AA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	530 mV

DIODE MOD SCHOTT 30V 80A TO249AA

Part	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Supplier Device Package	Diode Configuration	Speed	Voltage - Forward (Vf) (Max) @ If	Current - Average Rectified (Io) (per Diode) [custom]
SMC Diode Solutions 162CMQ030	Chassis Mount	30 V	Schottky	5 mA	150 °C	-55 °C	TO-249AA	TO-249AA	1 Pair Common Cathode	200 mA, 500 ns	530 mV	80 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	24	$ 33.14

General part information

Diode Array 1 Pair Common Cathode 30 V 80A Chassis Mount TO-249AA
