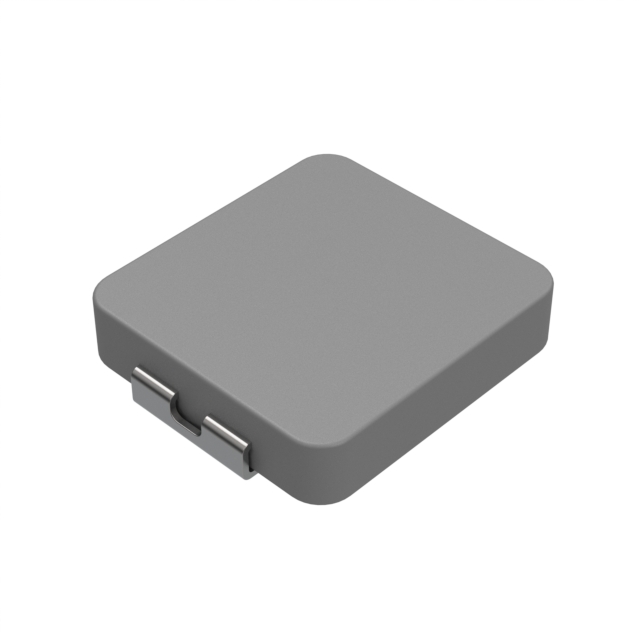

CMLE061E-R12MS

Active

Delta Electronics/Cyntec

FIXED IND 120NH 19A 3.65MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

CMLE061E-R12MS

Active

Delta Electronics/Cyntec

FIXED IND 120NH 19A 3.65MOHM SMD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CMLE061E-R12MS	CMLE061E Series

Current - Saturation (Isat)	-	4 - 19 A
Current Rating (Amps)	19 A	3 - 19 A
DC Resistance (DCR)	-	8.5 - 84 mOhm
DC Resistance (DCR) [Max]	3.65 mOhm	3.65 - 130 mOhm
Height - Seated (Max) [Max]	1.5 mm	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "	0.059 "
Inductance	120 nH	1.2 - 560 nH
Inductance Frequency - Test	100 kHz	100 kHz
Material - Core	Metal	Metal
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Nonstandard	Nonstandard
Shielding	Shielded	Shielded
Size / Dimension [x]	0.27 in	0.27 in
Size / Dimension [x]	6.86 mm	6.86 mm
Size / Dimension [y]	6.47 mm	6.47 mm
Size / Dimension [y]	0.255 "	0.255 "
Tolerance	20 %	20 %

CMLE061E Series

FIXED IND 120NH 19A 3.65MOHM SMD

Part	Inductance Frequency - Test	Tolerance	Material - Core	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Inductance	DC Resistance (DCR) [Max]	Package / Case	Current Rating (Amps)	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Saturation (Isat)	DC Resistance (DCR)
Delta Electronics/Cyntec CMLE061E-R12MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	120 nH	3.65 mOhm	Nonstandard	19 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C
Delta Electronics/Cyntec CMLE061E-R33MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	330 nH	6.5 mOhm	Nonstandard	13.5 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	19 A
Delta Electronics/Cyntec CMLE061E-2R2MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	2.2 µH		Nonstandard	6 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	6.1 A	42 mOhm
Delta Electronics/Cyntec CMLE061E-1R5MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	1.5 µH	28 mOhm	Nonstandard	7.2 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	7.7 A
Delta Electronics/Cyntec CMLE061E-4R7MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	4.7 ÁH		Nonstandard	3.5 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	4.5 A	84 mOhm
Delta Electronics/Cyntec CMLE061E-6R8MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	6.8 µH	130 mOhm	Nonstandard	3 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	4 A
Delta Electronics/Cyntec CMLE061E-1R2MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	1.2 µH		Nonstandard	7.5 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	8.5 A	25 mOhm
Delta Electronics/Cyntec CMLE061E-3R3MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	3.3 µH	63 mOhm	Nonstandard	3.8 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	5.2 A
Delta Electronics/Cyntec CMLE061E-R47MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	470 nH		Nonstandard	13 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	15.5 A	8.5 mOhm
Delta Electronics/Cyntec CMLE061E-R56MS	100 kHz	20 %	Metal	Surface Mount	1.5 mm	0.059 "	560 nH	11 mOhm	Nonstandard	10 A	Shielded	6.47 mm	0.27 in	0.255 "	6.86 mm	-55 °C	125 °C	14 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.75

Description

General part information

CMLE061E Series

120 nH Shielded Inductor 19 A 3.65mOhm Max Nonstandard
