TS2P9F26-BP

Active

Switchcraft Inc.

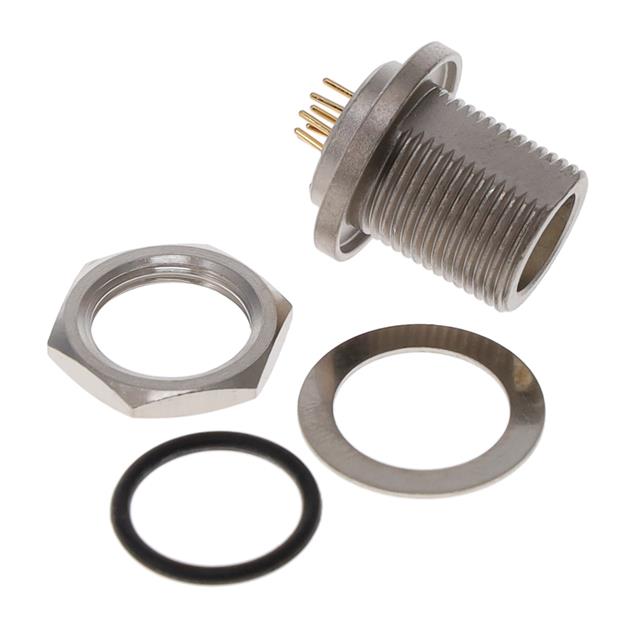

CONN RCPT FMALE 9POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 9POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS2P9F26-BP	TS2P9F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Rear Side Nut, Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	9	9
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Crimp, Solder Cup, Solder
Voltage Rating	30 VAC	30 VAC

CONN RCPT FMALE 9POS GOLD CRIMP

Part	Applications	Primary Material	Connector Type	Color	Shielding	Insert Material	Shell Material	Ingress Protection	Mounting Feature	Shell Finish	Contact Material	Orientation	Termination	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Mounting Type
Switchcraft Inc. TS2P9F26	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Receptacle, Female Sockets	Silver	Shielded	Liquid Crystal Polymer (LCP)	Copper Alloy	IP66, IP67, IP68	Bulkhead - Rear Side Nut	Electroless Nickel	Copper Alloy	Keyed	Crimp, Solder Cup	9	30 VAC	135 °C	-40 °C	Gold
Switchcraft Inc. TS2P9F26-BP	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Metal	Receptacle, Female Sockets	Silver	Shielded	Liquid Crystal Polymer (LCP)	Copper Alloy	IP66, IP67, IP68	Bulkhead - Front Side Nut	Electroless Nickel	Copper Alloy	Keyed	Solder	9	30 VAC	135 °C	-40 °C	Gold	Panel Mount, Through Hole
