PFC500-1024G

Active

Bel Power Solutions

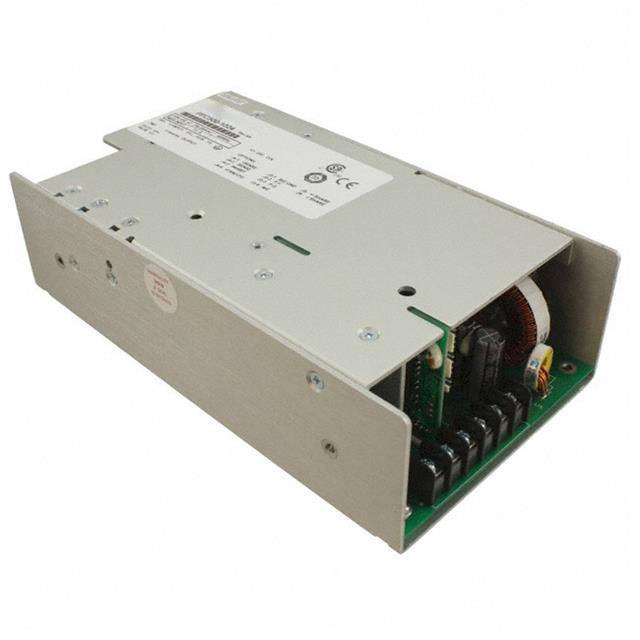

AC/DC CONVERTER 24V 500W

Deep-Dive with AI

Search across all available documentation for this part.

PFC500-1024G

Active

Bel Power Solutions

AC/DC CONVERTER 24V 500W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 939.30
		5	$ 907.99
		10	$ 876.68

Description

General part information

PFC500 Series

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PFC500-1024G	PFC500 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	21 A	10.4 - 21 A
Efficiency	75 %	75 %
Features	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	500 W	500 W
Size / Dimension	-	127 mm
Size / Dimension	-	63.5 mm
Size / Dimension [x]	228.6 mm	228.6 - 266.7 mm
Size / Dimension [x]	9 in	9 - 10.5 in
Size / Dimension [y]	5 "	5 "
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [z]	63.5 mm	63.5 mm
Size / Dimension [z]	2.5 in	2.5 in
Type	Enclosed	Enclosed
Voltage - Output 1	24 V	24 - 48 V

PFC500 Series

AC/DC CONVERTER 48V 500W

Part	Type	Efficiency	Operating Temperature [Max]	Number of Outputs	Mounting Type	Applications	Features	Voltage - Output 1	Current - Output 1	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Bel Power Solutions PFC500-1048FG	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	48 V	10.4 A	CE	500 W	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in
Bel Power Solutions PFC500-1024FG	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	24 V	21 A	CE	500 W	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in
Bel Power Solutions PFC500-1024G	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	24 V	21 A	CE	500 W		2.5 in	228.6 mm	5 "		9 in	63.5 mm	127 mm
Bel Power Solutions PFC500-1048G	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	48 V	10.4 A	CE	500 W		2.5 in	228.6 mm	5 "		9 in	63.5 mm	127 mm
Bel Power Solutions PFC500-1028FG	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	28 V	17.9 A	CE	500 W	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in
Bel Power Solutions PFC500-1024F	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	24 V	21 A	CE	500 W	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in
Bel Power Solutions PFC500-1024	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	24 V	21 A	CE	500 W		2.5 in	228.6 mm	5 "		9 in	63.5 mm	127 mm
Bel Power Solutions PFC500-1048F	Enclosed	75 %	70 °C	1	Chassis Mount	ITE (Commercial)	Adjustable Output, DC Input Capable, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input	48 V	10.4 A	CE	500 W	127 mm	2.5 in	266.7 mm	5 "	63.5 mm	10.5 in
