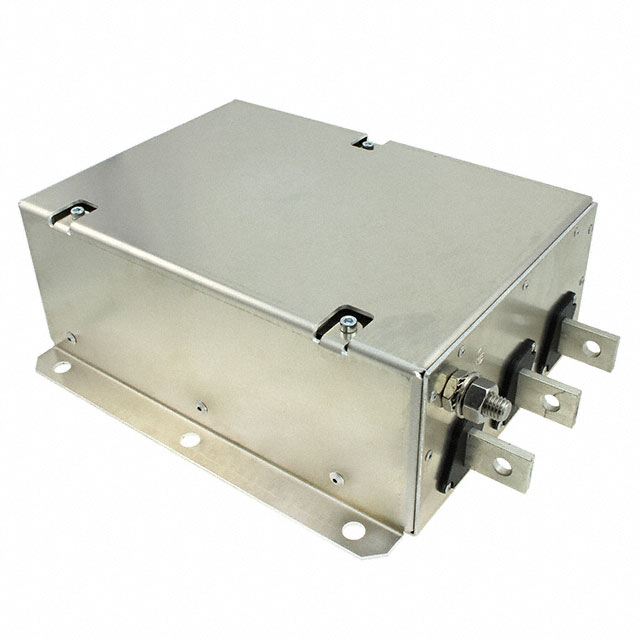

400APH12L

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520VAC 400A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 520VAC 400A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	400APH12L

Applications	General Purpose
Configuration	Three Stage
Current	400 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Post
Voltage - Rated AC	520 V

Part	Applications	Voltage - Rated AC	Filter Type	Mounting Type	Termination Style	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Current
TE Connectivity Raychem Cable Protection 400APH12P	General Purpose	690 V	Three Phase (Delta)	Chassis Mount	Terminal Post	Three Stage	60 Hz	50 Hz	-10 °C	50 °C	400 A
TE Connectivity Raychem Cable Protection 400APH12L	General Purpose	520 V	Three Phase (Delta)	Chassis Mount	Terminal Post	Three Stage	60 Hz	50 Hz	-10 °C	50 °C	400 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1118.41

General part information

Three Phase (Delta) EMC/EMI Line Filter 400 A 520V 50/60Hz Three Stage Terminal Post
