BGA855N6E6327XTSA1
ActiveIC AMP GPS 1.164GHZ-1.3GHZ TSNP6
Deep-Dive with AI
Search across all available documentation for this part.
BGA855N6E6327XTSA1
ActiveIC AMP GPS 1.164GHZ-1.3GHZ TSNP6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BGA855N6E6327XTSA1 |
|---|---|
| Current - Supply | 5.4 mA |
| Frequency [Max] | 1.3 GHz |
| Frequency [Min] | 1.164 GHz |
| Gain | 18.9 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 0.6 dB |
| P1dB | -8 dBm |

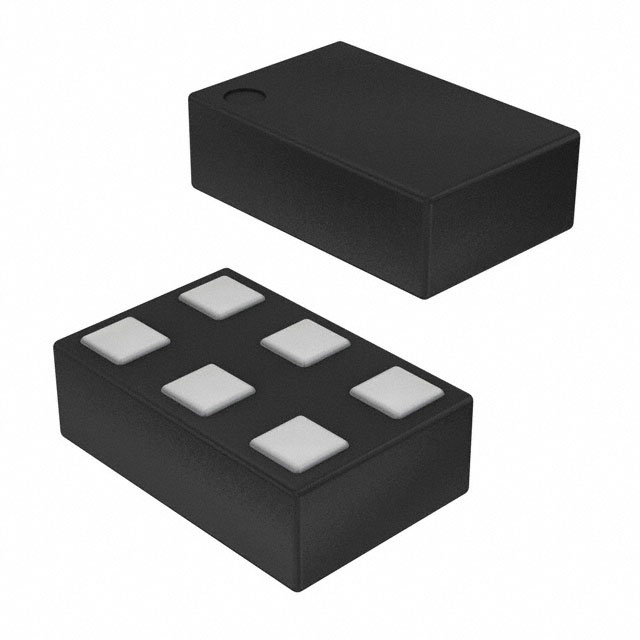

| Package / Case | 6-XFDFN |
| RF Type | GPS/GNSS |
| Supplier Device Package | PG-TSNP-6-10 |
| Test Frequency | 1.214 GHz |
| Voltage - Supply [Max] | 3.3 V |
| Voltage - Supply [Min] | 1.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 100 | $ 0.35 | |||
| 250 | $ 0.32 | |||
| 500 | $ 0.31 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 12000 | $ 0.27 | ||
| 24000 | $ 0.26 | |||
| 36000 | $ 0.26 | |||
Description
General part information
BGA855 Series
The BGA855N6 is designed to enhance GNSS signal sensitivity for band L2/L5 especially for very high accuracy. Besides GPS L5 and L2, the GNSS LNA also covers Galileo E5a, E5b, E6, Glonass G3, G2 and Beidou B3 and B2 bands for a frequency range from 1164 MHz to 1300 MHz. The LNA provides 17.8 dB gain and 0.6 dB noise figure at a current consumption of 4.8mA. The BGA855N6 is based upon Infineon Technologies‘ B9HF Silicon Germanium technology. It operates from 1.1 V to 3.3 V supply voltage.
