M83-LFT2F2N27-0000-000

Active

Harwin Inc.

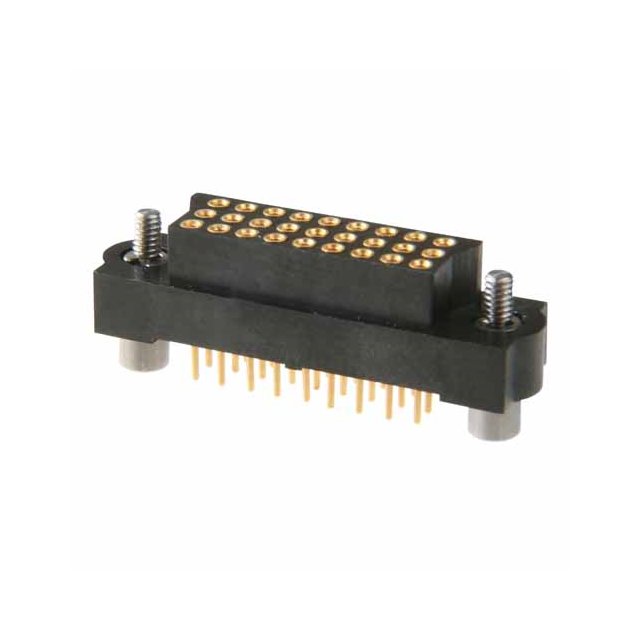

9 X 3-ROW FEMALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

9 X 3-ROW FEMALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M83-LFT2F2N27-0000-000

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Mounting Flange, Jackscrews
Insulation Color	Black
Insulation Height	8.33 mm
Insulation Height	0.328 "
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights [z]	10.65 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

Part	Insulation Height	Insulation Height	Applications	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Termination	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Number of Positions	Insulation Color	Mounting Type	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Number of Positions Loaded	Material Flammability Rating	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Mated Stacking Heights [z]	Features	Style	Contact Type	Number of Rows
Harwin Inc. M83-LFT2F2N27-0000-000	8.33 mm	0.328 "	Automotive General Purpose Military	0.173 in	4.4 mm	0.079 in	2 mm	Solder	Receptacle	0.079 in	2 mm	12 µin	0.3 µm	120 VDC	Gold	27	Black	Through Hole	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C	Circular	All	UL94 V-0	Beryllium Copper	10 çin	0.25 çm	Gold	10.65 mm	Jackscrews Mating Flange Mounting Flange	Board to Board Cable	Female Socket	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

27 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
