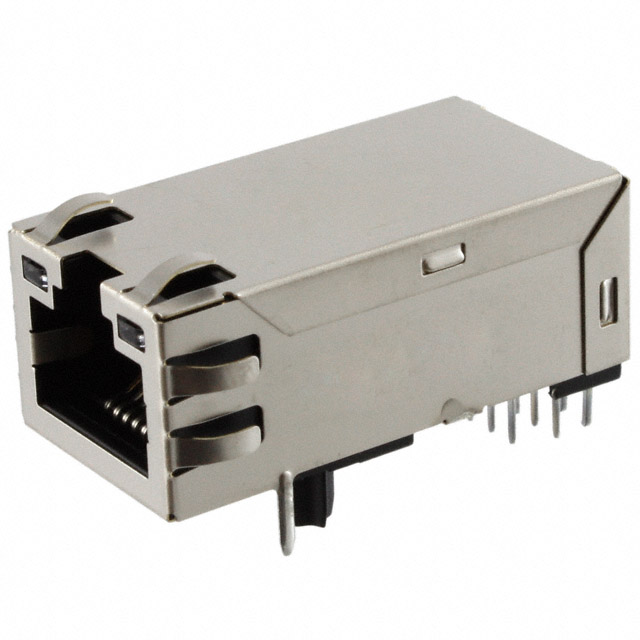

1840728-5

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 1000 BASE-T PCB

Part	LED Color	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Tab Direction	Features	Contact Material	Orientation	Number of Cores per Jack	Termination	Shield Material	Connector Type	Applications	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Rows	Contact Finish	Shielding	Height Above Board [z]	Height Above Board [z]
TRP Connector B.V. 1840728-5	Green - Green, Yellow	50 µin	1.27 µm	1	Up	Board Guide	Phosphor Bronze	90 °	8	Solder	Brass	RJ45	10/100/1000 Base-T, AutoMDIX	Thermoplastic	70 °C	0 °C	Through Hole	1	Gold	Shielded, EMI Finger	13.61 mm	0.536 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
