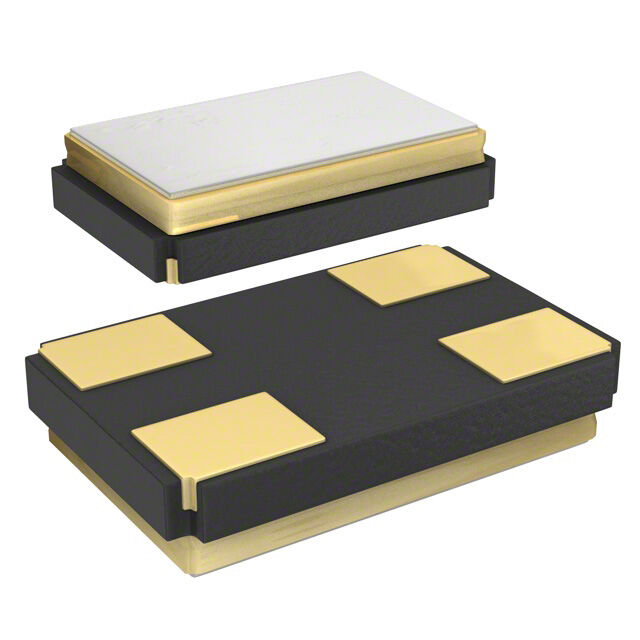

XR32H1I026.000060Q
ActiveDiodes Inc
CRYSTAL 26.0000MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XR32H1I026.000060Q
ActiveDiodes Inc
CRYSTAL 26.0000MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XR32H1I026.000060Q |
|---|---|
| ESR (Equivalent Series Resistance) | 60 Ohms |
| Frequency | 26 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Height - Seated (Max) [Max] [z] | 0.78 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.62 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.47 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.62 | |||
| 50 | $ 0.56 | |||
| 100 | $ 0.54 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.47 | |||
| Tape & Reel (TR) | 3000 | $ 0.44 | ||
| 6000 | $ 0.42 | |||
| 9000 | $ 0.41 | |||
| 15000 | $ 0.40 | |||
| 21000 | $ 0.39 | |||
Description
General part information
XR32H1 Series
26 MHz ±10ppm Crystal 8pF 60 Ohms 4-SMD, No Lead
