CYUSBS236

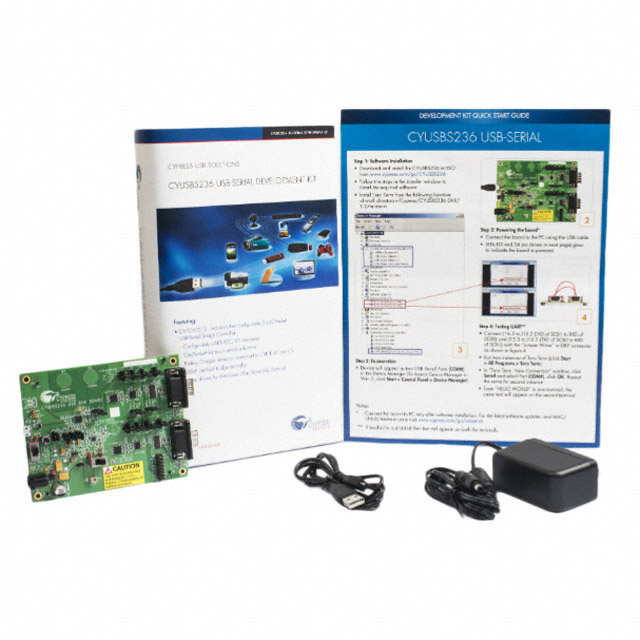

ActiveCYUSBS236 DEVELOPMENT KIT (DVK) HELPS EVALUATE THE FEATURES OF THE DUAL CHANNEL USB-SERIAL BRIDGE CONTROLLER, CY7C65215. THE DVK PROVIDES TWO COPPER PADS ON PCB TO TEST CAPSENSE FEATURE, TWO PAIRS OF EEPROMS TO TEST I2C AND SPI INTERFACES, TWO RS232 LINE DRIVERS TO TEST UART INTERFACES AND A LI-ION BATTERY CHARGING CONTROLLER (BATTERY NOT INCLUDED) TO TEST THE BCD FEATURE. THE
Deep-Dive with AI
Search across all available documentation for this part.
CYUSBS236
ActiveCYUSBS236 DEVELOPMENT KIT (DVK) HELPS EVALUATE THE FEATURES OF THE DUAL CHANNEL USB-SERIAL BRIDGE CONTROLLER, CY7C65215. THE DVK PROVIDES TWO COPPER PADS ON PCB TO TEST CAPSENSE FEATURE, TWO PAIRS OF EEPROMS TO TEST I2C AND SPI INTERFACES, TWO RS232 LINE DRIVERS TO TEST UART INTERFACES AND A LI-ION BATTERY CHARGING CONTROLLER (BATTERY NOT INCLUDED) TO TEST THE BCD FEATURE. THE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CYUSBS236 |
|---|---|
| Contents | Cable(s), Board(s), Power Supply |
| Function | USB 2.0 to UART (RS232) Bridge |
| Type | Interface |
| Utilized IC / Part | CY7C65215 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
CYUSBS236 Series
The USB-Serial Bridge Controller series is the latest addition to Infineon's family of Full-Speed USB Controllers. The CY7C65215 controller is the first in the industry to offer dual configurable serial channels for UART/I2C/SPI interfaces, with industry’s lowest power consumption in stand-by mode (5 uA). The CY7C65215 controller integrates the industry-leading CapSense™ capacitive-touch sensing technology (for touch sensitive key switches) and Battery Charging Detection logic compliant to USB-IF Battery Charging specification ver. 1.2 (to detect the source of power on the USB port). The controller features up to 19 pins for GPIO and is available in 32-pin QFN package. The controller is USB-IF certified with TID# 40860041. The USB-Serial Bridge Controller series is ideal for applications such as portable medical devices (like blood-glucose meters), point-of-sales terminals, Serial Cables (including USB-to-UART and RS232 cables) and many other applications requiring USB connectivity.
