RCG040247R0JNED

Active

Vishay General Semiconductor - Diodes Division

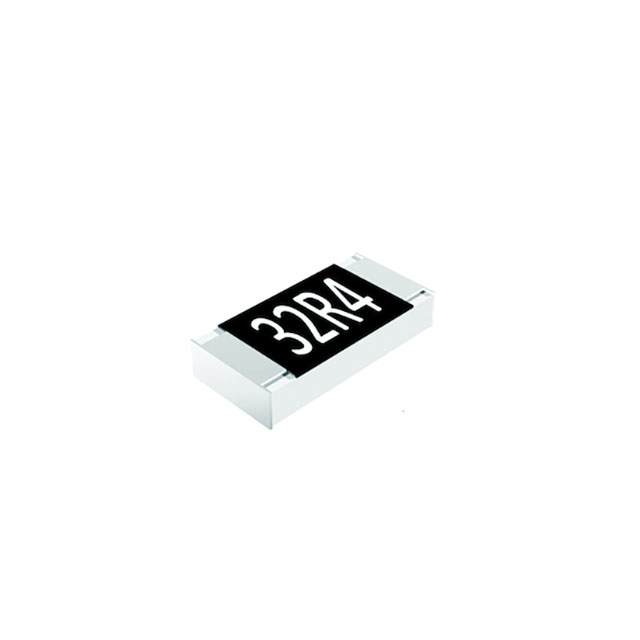

RES THICK FILM 0402 47 OHM 5% 0.063W(1/16W) ±200PPM/°C PAD SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RCG040247R0JNED

Active

Vishay General Semiconductor - Diodes Division

RES THICK FILM 0402 47 OHM 5% 0.063W(1/16W) ±200PPM/°C PAD SMD T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RCG040247R0JNED

Composition	Thick Film
Height - Seated (Max) [Max]	0.016 in
Height - Seated (Max) [Max]	0.4 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402 (1005 Metric)
Power (Watts)	0.0625 W
Power (Watts)	0.063 W
Resistance	47 Ohms
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Supplier Device Package	0402
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

RCG0402 Series

...

Part	Temperature Coefficient	Supplier Device Package	Package / Case	Tolerance	Power (Watts)	Power (Watts)	Resistance	Number of Terminations	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Vishay General Semiconductor - Diodes Division RCG040210M0FKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	1 MOhms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG0402604RFKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	604 Ohms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040271K5FKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	71.5 kOhms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040210R0FLED	150 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	10 Ohms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040249R9FLED	150 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	49.9 Ohms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG04022K67FKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	2.67 kOhms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040247R0JNED	200 ppm/°C	0402	0402 (1005 Metric)	5 %	0.0625 W	0.063 W	47 Ohms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040256R0FLED	150 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	56 Ohms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG04026K49FKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	6.49 kOhms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm
Vishay General Semiconductor - Diodes Division RCG040261K9FKED	100 ppm/°C	0402	0402 (1005 Metric)	1 %	0.0625 W	0.063 W	61.9 kOhms	2	155 °C	-55 °C	Thick Film	1 mm	0.02 in	0.5 mm	0.039 in	0.016 in	0.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.05
		50	$ 0.03
		100	$ 0.03
		500	$ 0.02
		1000	$ 0.02
		5000	$ 0.01
	Digi-Reel®	1	$ 0.10
		10	$ 0.05
		50	$ 0.03
		100	$ 0.03
		500	$ 0.02
		1000	$ 0.02
		5000	$ 0.01
	Tape & Reel (TR)	10000	$ 0.01
		20000	$ 0.01
		30000	$ 0.01
		50000	$ 0.01
		70000	$ 0.01
		100000	$ 0.01
		250000	$ 0.01
		500000	$ 0.01
		1000000	$ 0.01

Description

General part information

RCG0402 Series

47 Ohms ±5% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Thick Film
