STL40DN3LLH5 - 8 Power VDFN

STL40DN3LLH5

Active
STMicroelectronics

AUTOMOTIVE-GRADE DUAL N-CHANNEL 30 V, 0.016 OHM TYP., 11 A STRIPFET H5 POWER MOSFET IN A POWERFLAT 5X6 DOUBLE ISLAND PACKAGE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetAN1506+10

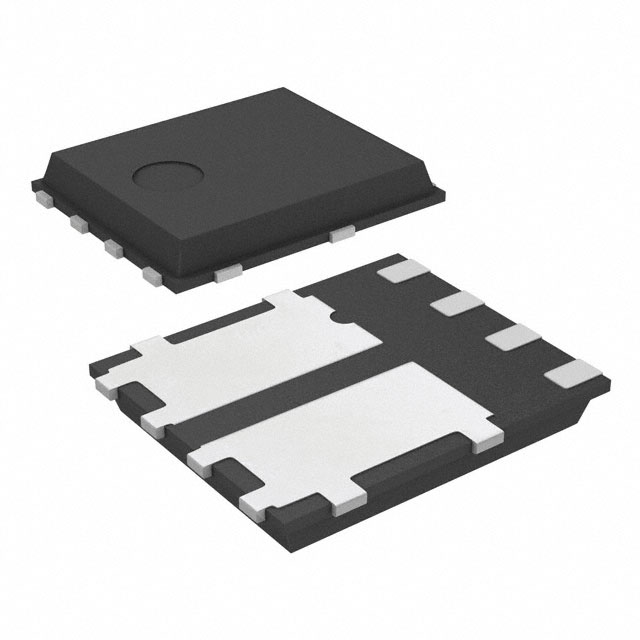

STL40DN3LLH5 - 8 Power VDFN

STL40DN3LLH5

Active
STMicroelectronics

AUTOMOTIVE-GRADE DUAL N-CHANNEL 30 V, 0.016 OHM TYP., 11 A STRIPFET H5 POWER MOSFET IN A POWERFLAT 5X6 DOUBLE ISLAND PACKAGE

Deep-Dive with AI

DocumentsDatasheetAN1506+10

Technical Specifications

Parameters and characteristics for this part

SpecificationSTL40DN3LLH5
Configuration2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C40 A
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs [Max]4.5 nC
Input Capacitance (Ciss) (Max) @ Vds [Max]475 pF
Mounting TypeSurface Mount
Operating Temperature [Max]175 ░C
Operating Temperature [Min]-55 °C
Package / Case8-PowerVDFN
Power - Max [Max]60 W
Rds On (Max) @ Id, Vgs18 mOhm
Supplier Device PackagePowerFlat™ (5x6)
TechnologyMOSFET (Metal Oxide)
Vgs(th) (Max) @ Id1.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.13
10$ 0.92
100$ 0.72
500$ 0.61
1000$ 0.50
Digi-Reel® 1$ 1.13
10$ 0.92
100$ 0.72
500$ 0.61
1000$ 0.50
Tape & Reel (TR) 3000$ 0.47
6000$ 0.44
9000$ 0.42
LCSCPiece 1$ 2.17
10$ 2.00
30$ 1.90
100$ 1.79
500$ 1.75
1000$ 1.72

Description

General part information

STL40DN3LLH5 Series

This N-channel Power MOSFET utilizes STripFET F7 technology with an enhanced trench gate structure that results in very low on-state resistance, while also reducing internal capacitance and gate charge for faster and more efficient switching.
