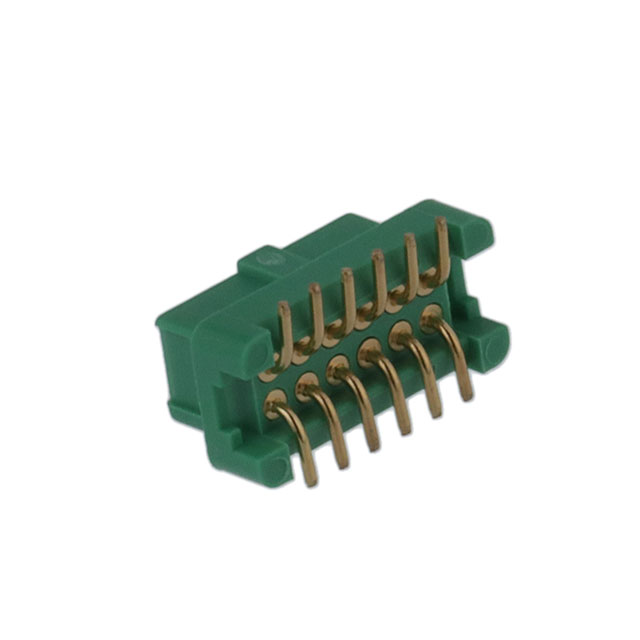

G125-FS11205L0R

G125-FS11205L0R

Active
Harwin Inc.

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, SURFACE MOUNT, RECEPTACLE, 12, 1.25 MM ROHS COMPLIANT: YES

Find alt
G125-FS11205L0R

G125-FS11205L0R

Active
Harwin Inc.

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, SURFACE MOUNT, RECEPTACLE, 12, 1.25 MM ROHS COMPLIANT: YES

Find alt

Description

General part information

G125-FS1 Series

12 Position Receptacle Connector 0.049" (1.25mm) Surface Mount Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationG125-FS11205L0R
ApplicationsGeneral Purpose, Automotive
Connector TypeReceptacle
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thickness - Mating8 µin
Contact MaterialCopper Alloy
Contact ShapeCircular
Contact TypeFemale Socket
Current Rating2 A
Fastening TypeLatch Holder
FeaturesPick and Place, Polarizing Key
Insulation ColorGreen
Insulation Height0.207 in
Insulation MaterialHalogen Free, Polyamide (PA4T), Nylon 4T, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions12
Number of Positions LoadedAll
Number of Rows2
Operating Temperature (Max)150 °C
Operating Temperature (Min)-65 °C
Pitch - Mating0.049 in
Row Spacing - Mating0.049 in
StyleBoard, Board or Cable
TerminationSolder
