Specification	1-1986725-4

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	9 A
Features	Mating Flange
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.459 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	14
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.138 in
Plug Wire Entry Angle	180 °
Positions Per Level	14
Termination Style	Screwless - Leg Spring, Push-In Spring
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	14 AWG
Wire Gauge or Range - mm² (Maximum)	2 mm²
Wire Gauge or Range - mm² (Minimum)	0.05 mm²

1986725 Series

Part	Number of Positions	Termination Style	Pitch	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Contact Mating Finish	Type	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Current - UL	Positions Per Level	Plug Wire Entry Angle	Features	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Color	Voltage - UL	Material Flammability Rating	Insulation Height	Housing Material	Contact Material
TE Connectivity AMP Connectors 1986725-7	7	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	7	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-1986725-4	14	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	14	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy
TE Connectivity AMP Connectors 2-1986725-0	20	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	20	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy

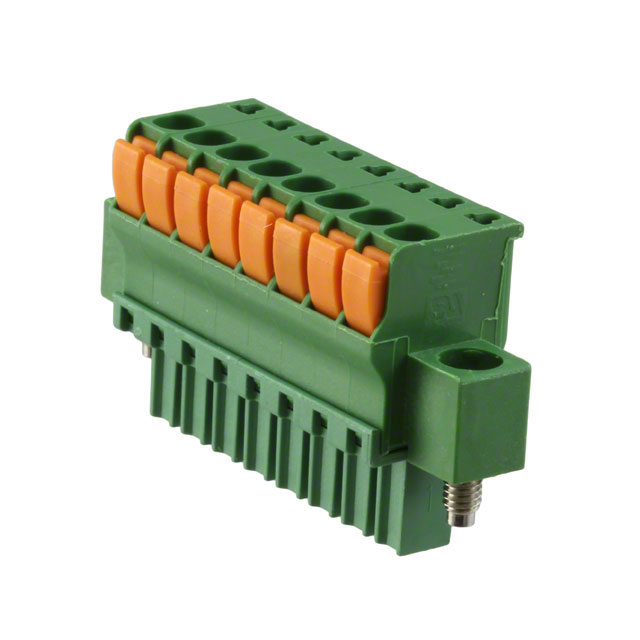

TE Connectivity AMP Connectors 1986725-8	8	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	8	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1986725-4	4	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	4	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy
TE Connectivity AMP Connectors 1-1986725-3	13	Push-In Spring Screwless - Leg Spring	0.138 in	0.05 mm²	2 mm²	Tin	Female Sockets Plug	1	-40 °C	110 °C	Free Hanging (In-Line)	9 A	13	180 °	Mating Flange	30 AWG	14 AWG	Green	300 V	UL94 V-0	0.459 in	Nylon PA Polyamide	Copper Alloy
