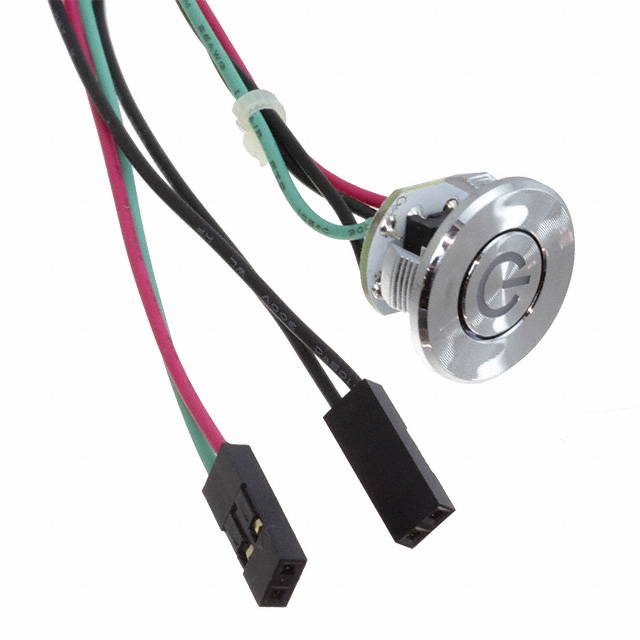

TL1275CA2WA500QPB
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL1275CA2WA500QPB
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL1275CA2WA500QPB |
|---|---|
| Actuator Orientation | Top Actuated |
| Actuator Type | Flush |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Illuminated |
| Illumination Type, Color | LED, Blue |
| Mechanical Life | 100000 Cycles |
| Operating Force | 350 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Outline [diameter] | 19 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 13.37 | |
| 20 | $ 12.08 | |||
| 40 | $ 10.91 | |||
| 80 | $ 10.53 | |||
| 240 | $ 9.88 | |||
| 440 | $ 9.04 | |||
| 960 | $ 7.99 | |||
Description
General part information
TL1275 Series
Tactile Switch SPST-NO Top Actuated Panel Mount
Documents
Technical documentation and resources
No documents available
