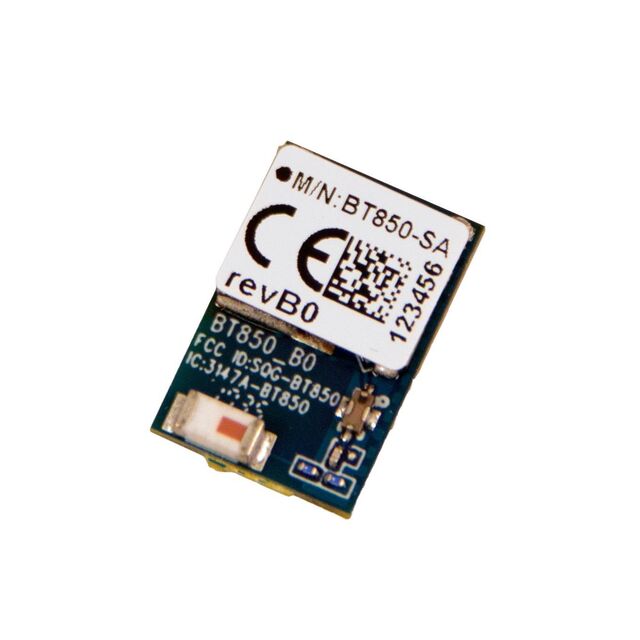

BT850-SA

Active

Ezurio LLC

RF TXRX MOD BLUETOOTH CHIP SMD

Search across all available documentation for this part.

Active

Ezurio LLC

RF TXRX MOD BLUETOOTH CHIP SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BT850-SA	BT850 Series

Antenna Type	Integrated, Chip	Antenna Not Included, Castellation, Integrated, Chip
Current - Transmitting	55 mA	55 mA
Data Rate	3 Mbps	3 Mbps
Frequency [Max]	2.48 GHz	2.48 GHz
Frequency [Min]	2.402 GHz	2.402 GHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Package / Case	28-SMD Module	28-SMD Module
Power - Output	8 dBm	8 dBm
Protocol	Bluetooth v5.0	Bluetooth v5.0
RF Family/Standard	Bluetooth	Bluetooth
Sensitivity	-94 dBm	-94 dBm
Serial Interfaces	USB, PCM, I2S	USB, PCM, I2S
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	3 V	3 V

RF TXRX MOD BT CAST SMD

Part	Sensitivity	Frequency [Max]	Frequency [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Protocol	Package / Case	Power - Output	Serial Interfaces	Data Rate	Current - Transmitting	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	Antenna Type
Ezurio LLC BT850-ST-T/R	-94 dBm	2.48 GHz	2.402 GHz	-30 ░C	85 °C	Bluetooth v5.0	28-SMD Module	8 dBm	I2S, PCM, USB	3 Mbps	55 mA	Surface Mount	3.6 V	3 V	Bluetooth	Antenna Not Included, Castellation
Ezurio LLC BT850-ST	-94 dBm	2.48 GHz	2.402 GHz	-30 ░C	85 °C	Bluetooth v5.0	28-SMD Module	8 dBm	I2S, PCM, USB	3 Mbps	55 mA	Surface Mount	3.6 V	3 V	Bluetooth	Antenna Not Included, Castellation
Ezurio LLC BT850-SA	-94 dBm	2.48 GHz	2.402 GHz	-30 ░C	85 °C	Bluetooth v5.0	28-SMD Module	8 dBm	I2S, PCM, USB	3 Mbps	55 mA	Surface Mount	3.6 V	3 V	Bluetooth	Integrated, Chip

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bluetooth Bluetooth v5.0 Transceiver Module 2.402GHz ~ 2.48GHz Integrated, Chip Surface Mount

Technical documentation and resources

No documents available
