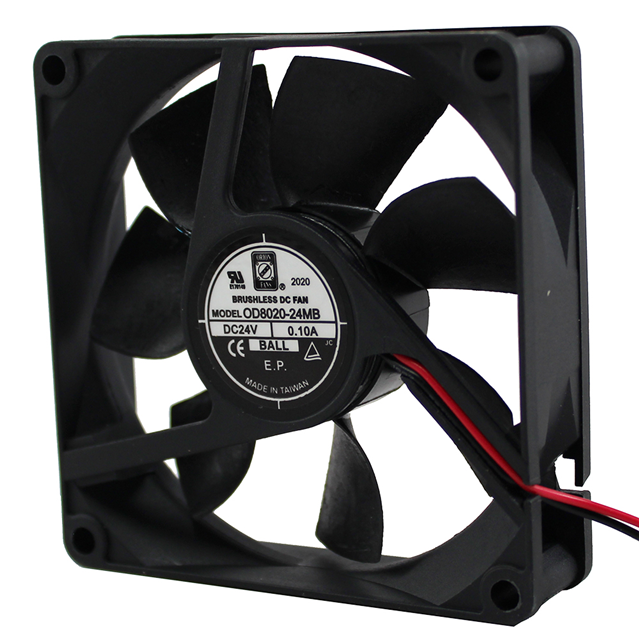

OD8020-24MB

Active

Orion Fans

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 32 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEnhanced Product Overview EN Miscellaneous EN

OD8020-24MB

Active

Orion Fans

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 20 MM, BALL BEARING, 32 CFM

Deep-Dive with AI

DocumentsEnhanced Product Overview EN Miscellaneous EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD8020-24MB

Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	20 mm

OD8020 Series

...

Part	Termination	Material - Blade	Width [y]	Features	Voltage - Rated	Fan Type	Material - Frame	Bearing Type	Size / Dimension [y]	Size / Dimension [x]
Orion Fans OD8020-12HSS5	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	80 mm	80 mm
Orion Fans OD8020-05HS01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	Speed Sensor (Tach)	5 V	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve	80 mm	80 mm
Orion Fans OD8020-05HB02A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	Locked Rotor Sensor	5 V	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	80 mm	80 mm
Orion Fans OD8020-12HHB10A	4 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control Speed Sensor (Tach)	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	80 mm	80 mm
Orion Fans OD8020-12MSS10A	4 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control Speed Sensor (Tach)	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	80 mm	80 mm
Orion Fans OD8020-24MB	2 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm		24 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	80 mm	80 mm
Orion Fans OD8020-12MB5	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	80 mm	80 mm
Orion Fans OD8020-12HB5	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	80 mm	80 mm
Orion Fans OD8020-12MS5	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	PWM Control	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve	80 mm	80 mm
Orion Fans OD8020-12LSS01A	3 Wire Leads	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20 mm	Speed Sensor (Tach)	12 VDC	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	80 mm	80 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.36
		10	$ 8.73
		40	$ 8.36
Newark	Each	1	$ 13.38
		1000	$ 12.27

Description

General part information

OD8020 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 2 Wire Leads

Documents

Technical documentation and resources

Enhanced Product Overview EN

Datasheet

Miscellaneous EN

Datasheet
