A3M1ASQ12VDC2

Active

CIT Relay and Switch

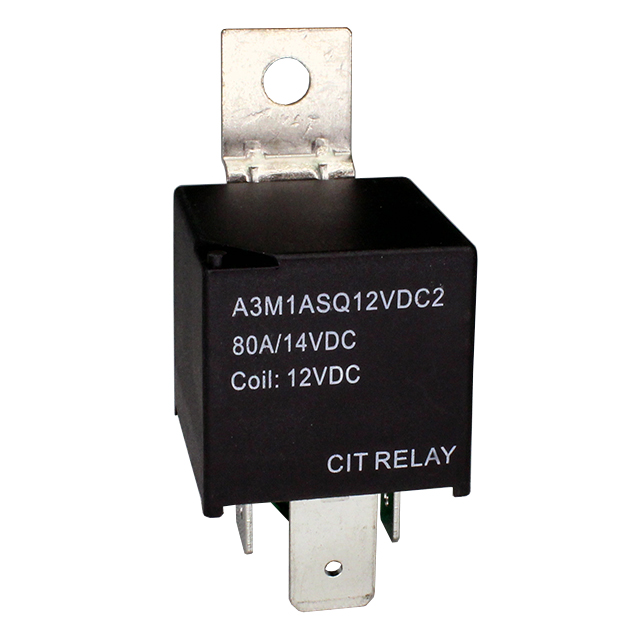

RELAY AUTOMOTIVE SPST 80A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 80A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A3M1ASQ12VDC2	A3M1ASQ Series

Coil Current	150 mA	75 - 150 mA
Coil Power	1.8 W	1.8 W
Coil Resistance	80 Ohms	80 - 320 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	80 A	80 A
Features	Sealed - Fully	Resistor, Sealed - Fully, Diode
Mounting Type	Chassis Mount	Chassis Mount
Must Operate Voltage	8.4 VDC	8.4 - 16.8 VDC
Must Release Voltage	1.2 VDC	1.2 - 2.4 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	Quick Connect - Multiple Sizes	Quick Connect - Multiple Sizes

RELAY AUTOMOTIVE SPST 80A 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Coil Power	Must Release Voltage	Coil Voltage	Must Operate Voltage	Release Time	Operate Time	Contact Rating (Current)	Coil Resistance	Contact Form	Coil Type	Features	Mounting Type	Termination Style	Contact Material	Coil Current	Switching Voltage
CIT Relay and Switch A3M1ASQ24VDC2R	125 °C	-40 °C	1.8 W	2.4 VDC	24 VDC	16.8 VDC	5 ms	7 ms	80 A	320 Ohms	SPST-NO (1 Form A)	Non Latching	Resistor, Sealed - Fully	Chassis Mount	Quick Connect - Multiple Sizes	Silver Tin Oxide Indium Oxide (AgSnOInO)	75 mA	75 VDC
CIT Relay and Switch A3M1ASQ12VDC2	125 °C	-40 °C	1.8 W	1.2 VDC	12 VDC	8.4 VDC	5 ms	7 ms	80 A	80 Ohms	SPST-NO (1 Form A)	Non Latching	Sealed - Fully	Chassis Mount	Quick Connect - Multiple Sizes	Silver Tin Oxide Indium Oxide (AgSnOInO)	150 mA	75 VDC
CIT Relay and Switch A3M1ASQ24VDC2D	125 °C	-40 °C	1.8 W	2.4 VDC	24 VDC	16.8 VDC	5 ms	7 ms	80 A	320 Ohms	SPST-NO (1 Form A)	Non Latching	Diode, Sealed - Fully	Chassis Mount	Quick Connect - Multiple Sizes	Silver Tin Oxide Indium Oxide (AgSnOInO)	75 mA	75 VDC
