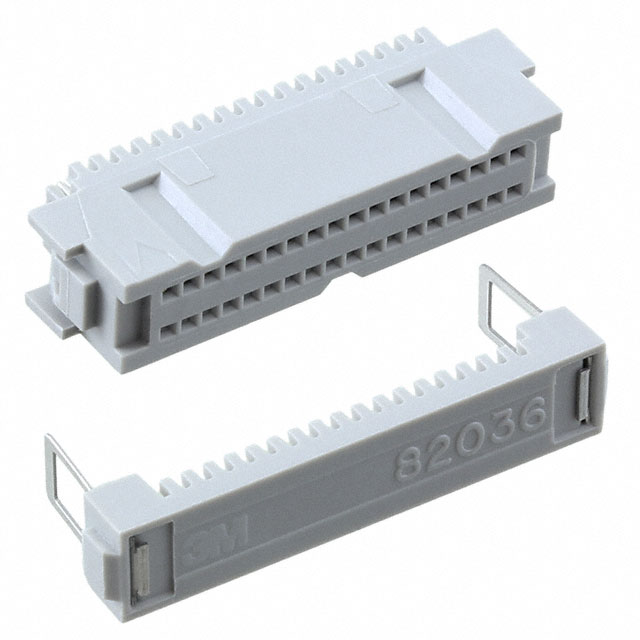

82036-6000RB

Obsolete

3M (TC)

WIRE-TO-BOARD CONNECTOR, 820 SERIES, IDC / IDT, RECEPTACLE, 36, 1.27 MM, TIN PLATED CONTACTS

Search across all available documentation for this part.

Obsolete

3M (TC)

WIRE-TO-BOARD CONNECTOR, 820 SERIES, IDC / IDT, RECEPTACLE, 36, 1.27 MM, TIN PLATED CONTACTS

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Number of Positions	Wire Gauge	Pitch [x]	Pitch [x]	Wire Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Type	Cable Termination	Mounting Type	Color	Row Spacing [x]	Row Spacing	Features
3M (TC) 82036-6000RB	Receptacle	36	30 AWG	0.05 in	1.27 mm	Ribbon Cable	Gold	0.76 Ám	30 Áin	2	Female Socket	IDC	Free Hanging (In-Line)	Gray	0.1 in	2.54 mm	Feed Through
3M (TC) 82036-6006RB	Receptacle	36	30 AWG	0.05 in	1.27 mm	Ribbon Cable	Gold	0.76 Ám	30 Áin	2	Female Socket	IDC	Free Hanging (In-Line)	Gray	0.1 in	2.54 mm	Feed Through Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

36 Position Rectangular Receptacle Connector IDC Gold 30 AWG
