901-9602-1

Active

Amphenol RF

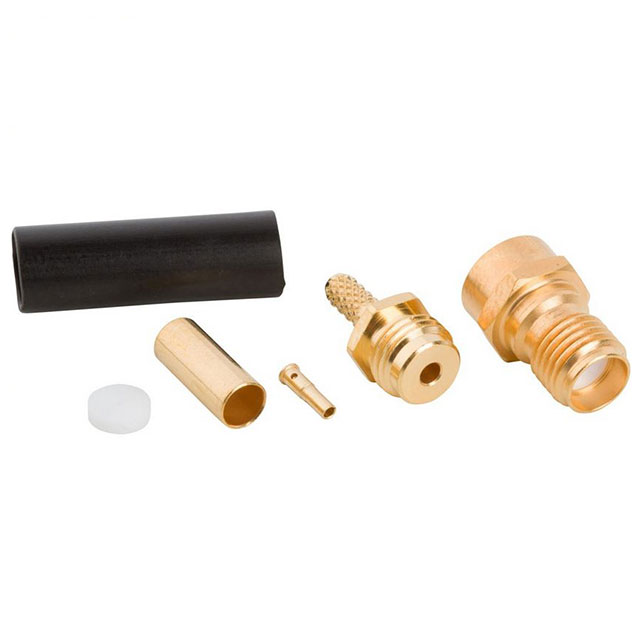

CONN SMA 0HZ TO 12.4GHZ 50OHM CRIMP ST CABLE MOUNT F GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-9602-1

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-55
Cable Group	223, 142, 400
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 Insulator, 1 Nut, 1 Heat Shrink, 1 Contact
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

901-96 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Group	Impedance	Number of Ports	Shield Termination	Includes	Connector Type	Connector Style	Voltage Rating	Contact Termination	Ingress Protection	Center Contact Plating	Dielectric Material	Housing Color	Mounting Feature	Frequency - Max [Max]	Center Contact Material	Mating Cycles	Body Material	Mounting Type	Cable Group	Body Finish
Amphenol RF 901-9610-12SF	-65 ░C	165 °C	188 316 Double Braid M17/152-RD316 RG-179	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Lockwasher 2 Nuts	Female Socket Jack	SMA	375 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Silver	Bulkhead - Front Side Nut	12.4 GHz	Beryllium Copper	500	Stainless Steel
Amphenol RF 901-9602-1	-65 ░C	165 °C	RG-55	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Nut	Female Socket Jack	SMA	500 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Gold		12.4 GHz	Beryllium Copper	500	Stainless Steel	Free Hanging (In-Line)	142 223 400	Gold
Amphenol RF 901-9601-3SF	-65 ░C	165 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Nut	Male Pin Plug	SMA	375 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Silver		12.4 GHz	Beryllium Copper	500	Stainless Steel	Free Hanging (In-Line)
Amphenol RF 901-9610-1SF	-65 ░C	165 °C	RG-55	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Lockwasher 2 Nuts	Female Socket Jack	SMA	500 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Silver	Bulkhead - Front Side Nut	12.4 GHz	Beryllium Copper	500	Stainless Steel		142 223 400
Amphenol RF 901-9601-3	-65 ░C	165 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Nut	Male Pin Plug	SMA	375 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Gold		12.4 GHz	Beryllium Copper	500	Stainless Steel	Free Hanging (In-Line)		Gold
Amphenol RF 901-9610-3SF	-65 ░C	165 °C	188 188A 316 LMR-100 M17/119-RG174 RG-174	50 Ohms	1	Crimp	1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator 1 Lockwasher 2 Nuts	Female Socket Jack	SMA	375 V	Solder	Weatherproof	Gold	Polytetrafluoroethylene (PTFE)	Silver	Bulkhead - Front Side Nut	12.4 GHz	Beryllium Copper	500	Stainless Steel

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

901-96 Series

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
