ESD-R-341616H-NC23

ESD-R-341616H-NC23

Active

NANOCRYSTAL TROIDS CASED 16.5MM

ESD-R-341616H-NC23

ESD-R-341616H-NC23

Active

NANOCRYSTAL TROIDS CASED 16.5MM

Description Specifications Series Pricing CAD Documents

Description

General part information

ESD-R Series

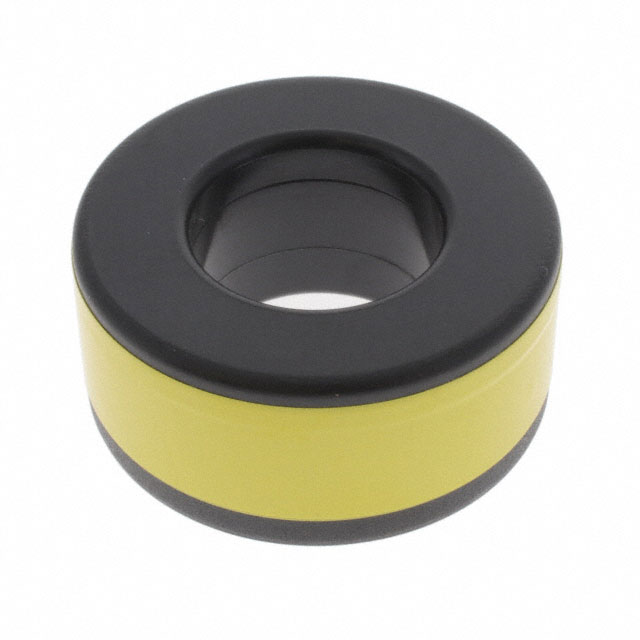

Solid Free Hanging Ferrite Core ID 0.650" Dia (16.50mm) OD 1.339" Dia (34.00mm) Length 0.630" (16.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification	ESD-R-341616H-NC23

Design	Solid
Inner Dimension (Diameter)	0.65 in
Length	0.63 in
Mounting Type	Free Hanging
Outer Dimension (Diameter)	1.339 in
Type	Round

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

KEM_E5011_ESD-R-NC.pdf

ESD-R-341616H-NC23 Spec

ESD-R-341616H-NC23 | Datasheet

Technical Data Sheet EN

ESD-R Series

Part	Length	Mounting Type	Type	Design	Material	Inner Dimension (Diameter)	Outer Dimension (Diameter)
KEMET ESD-R-12D	0.252 in	Free Hanging	Round	Solid	NIZn	0.236 in	0.507 in
KEMET ESD-R-47-1	0.709 in	Free Hanging	Round	Solid	MnZn	0.906 in	1.969 in
KEMET ESD-R-47D-1	0.63 in	Free Hanging	Round	Solid	NIZn	1.003 in	1.889 in
KEMET ESD-R-19N-H	0.551 in	Free Hanging	Round	Solid	NIZn	0.303 in	0.866 in
KEMET ESD-R-57D	0.787 in	Free Hanging	Round	Solid	NIZn	1.417 in	2.244 in
KEMET ESD-R-25SD	0.472 in	Free Hanging	Round	Solid	MnZn	0.591 in	0.984 in
KEMET ESD-R-18SD	0.236 in	Free Hanging	Round	Solid	NIZn	0.394 in	0.709 in
KEMET ESD-R-783926H-NC21-BT	1.024 in	Free Hanging	Round	Solid		1.555 in	3.07 in
KEMET ESD-R-19E-1	0.209 in	Free Hanging	Round	Solid	NIZn	0.421 in	0.748 in
KEMET ESD-R-12S	0.216 in	Free Hanging	Round	Solid	NIZn	0.276 in	0.472 in
