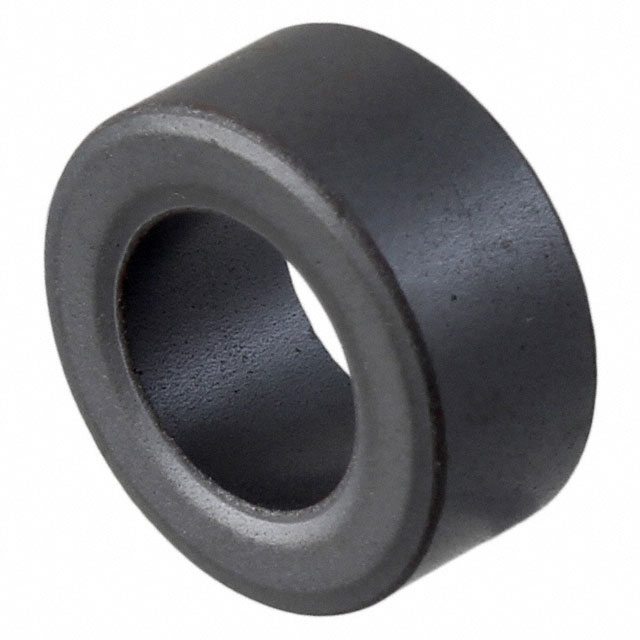

ESD-R-12D

Active

KEMET

CYLINDRICAL CORE, ID-6MM, OD-12.9MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KEMET

CYLINDRICAL CORE, ID-6MM, OD-12.9MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Outer Dimension [diameter]	Outer Dimension [diameter]	Length [x]	Length [x]	Type	Material	Mounting Type	Inner Dimension [diameter]	Inner Dimension [diameter]	Length	Length
KEMET ESD-R-12D	12.9 mm	0.507 in	0.252 in	6.4 mm	Round	NIZn	Free Hanging	6 mm	0.236 in
KEMET ESD-R-47D-1			0.63 in	16 mm	Round	NIZn	Free Hanging	25.5 mm	1.003 in
KEMET ESD-R-25SD	25 mm	0.984 in			Round	MnZn	Free Hanging			0.472 "	12 mm
KEMET ESD-R-783926H-NC21-BT	78 mm	3.07 in	1.024 "	26 mm	Round		Free Hanging	39.5 mm	1.555 in
KEMET ESD-R-19E-1	19 mm	0.748 in			Round	NIZn	Free Hanging	10.7 mm	0.421 in	0.209 in	5.3 mm
KEMET ESD-R-12S	12 mm	0.472 in	0.216 in	5.5 mm	Round	NIZn	Free Hanging	7 mm	0.276 "
KEMET ESD-R-25S	25 mm	0.984 in			Round	MnZn	Free Hanging			0.472 "	12 mm
KEMET ESD-R-16	15.8 mm	0.622 in	0.331 in	8.4 mm	Round	MnZn	Free Hanging	11.6 mm	0.456 "
KEMET ESD-R-16C	16 mm	0.63 in	0.669 in	17 mm	Round	NIZn	Free Hanging	9 mm	0.354 "
KEMET ESD-R-47-P	48.5 mm	1.909 in	0.63 in	16 mm	Round	MnZn	Free Hanging		1.024 " 26 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid Free Hanging Ferrite Core ID 0.236" Dia (6.00mm) OD 0.507" Dia (12.90mm) Length 0.252" (6.40mm)
